Parts Location [10/2017 - 09/2020]: Illustration

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2020 Lexus IS 350, 2020 Lexus IS 300, 2019 Lexus IS 350, 2019 Lexus IS 300, and 2018 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

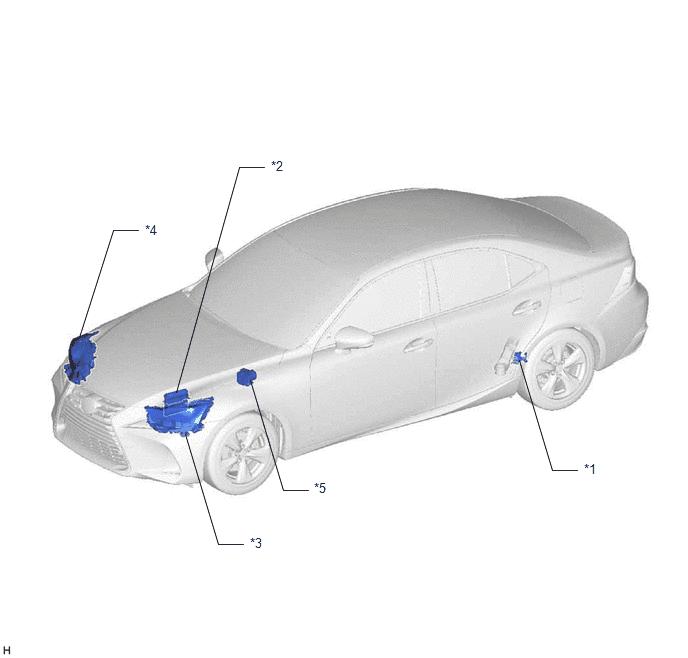

Fig 1: AFS (Adaptive Front-Lighting System) Component Location (1 Of 2) [10/2017 - 09/2020]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH	*2	ECM
*3	HEADLIGHT ASSEMBLY LH - HEADLIGHT UNIT LH (HEADLIGHT SWIVEL MOTOR LH)	*4	HEADLIGHT ASSEMBLY RH - HEADLIGHT UNIT RH (HEADLIGHT SWIVEL MOTOR RH)
*5	BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU)	-	-

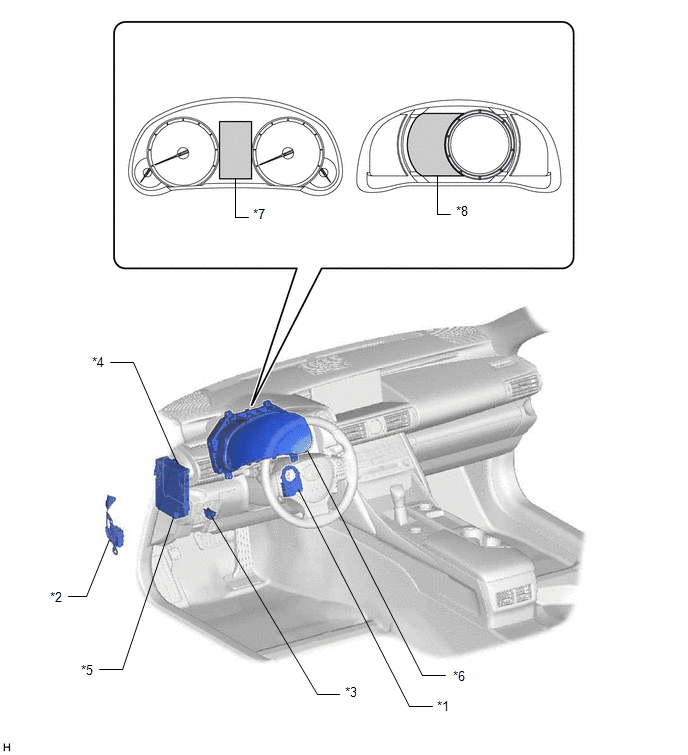

Fig 1: AFS (Adaptive Front-Lighting System) Component Location (2 Of 2) [10/2017 - 09/2020]

*1	STEERING SENSOR	*2	HEADLIGHT SWIVEL ECU ASSEMBLY
*3	DLC3	*4	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*5	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 1 FUSE - ECU-IG1 NO. 2 FUSE	*6	COMBINATION METER ASSEMBLY
*7	MULTI-INFORMATION DISPLAY (for Standard) - AFS On/Off SWITCH	*8	MULTI-INFORMATION DISPLAY (for Sport Package) - AFS On/Off SWITCH
