Removal [04/2013 - 08/2015]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY LH (for AWD)

    Refer to REMOVAL [04/2013 - ]

  2. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [04/2013 - 10/2016]

  3. DISCONNECT HEATED OXYGEN SENSOR CONNECTOR
    1. for Bank 1:
      1. Turn back the floor carpet.
      2. Disconnect the heated oxygen sensor connector.
        GTY512658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ Clamp
      3. w/ Clamp:
        1. Disconnect the clamp.
    2. for Bank 2:
      1. Turn back the floor carpet.
      2. Disconnect the heated oxygen sensor connector.
        GTY496301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for 2WD
        *B for AWD
        *C w/ Clamp
      3. w/ Clamp:
        1. Disconnect the clamp.
  4. REMOVE HEATED OXYGEN SENSOR
    1. for Bank 1:
      1. Disconnect the heated oxygen sensor grommet from the body.
        GTY460465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Grommet
      2. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
        • SST: 09224-00010
        GTY464309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Bank 2 (for 2WD):

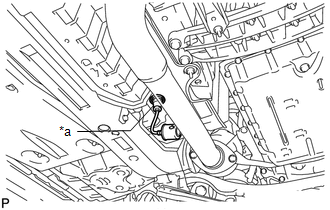

      1. Disconnect the heated oxygen sensor grommet from the body.
        GTY466813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Grommet
      2. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
        GTY456168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        • SST: 09224-00010
    3. for Bank 2 (for AWD with Front Floor Cover LH):
      1. Disconnect the 6 clips and remove the front floor cover LH.
        GTY460731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the heated oxygen sensor grommet from the body.
        GTY463744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Grommet
      3. Disconnect the 2 clamps from the body.
      4. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
        GTY470437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        • SST: 09224-00010
    4. for Bank 2 (for AWD without Front Floor Cover LH):
      1. Disconnect the heated oxygen sensor grommet from the body.
        GTY457572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Grommet
      2. Disconnect the 3 clamps from the body.
      3. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
        GTY470437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        • SST: 09224-00010
