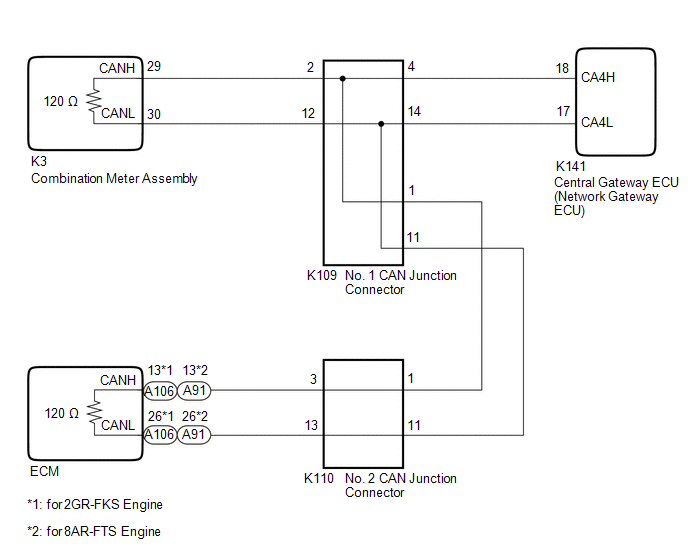

Open in Bus 2 Main Bus Line [10/2017 - 11/2021]: Wiring Diagram

GTY790552

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
