Accessory Meter Assembly Communication Error: Procedure

1. Enter diagnostic mode. Refer to DTC CHECK / CLEAR [06/2012 - ] .

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Press preset switch "2" to change the mode to "Detailed Information Mode".
3. Identify the component shown by the sub-code.

   HINT:

   • The sub-code "P190" shown in the above example indicates the radio receiver assembly.
   • For details of the DTC display, refer to DTC Check/Clear. Refer to DTC CHECK / CLEAR [06/2012 - ] .

NEXT: Go to next step

1. Inspect the power source circuit of the component shown by the sub-code.

   If the power source circuit is operating normally, proceed to the next step.

   COMPONENT TABLE



   Component	Proceed to
   Radio receiver assembly (190)	Radio receiver power source circuit. Refer to Radio Receiver Power Source Circuit
   Stereo component amplifier assembly (440)	Stereo component amplifier power source circuit. Refer to Stereo Component Amplifier Power Source Circuit
   Air conditioning control panel (1C4)	Air conditioning control panel circuit. Refer to Air Conditioning Control Panel Circuit

NEXT: Go to next step

1. Disconnect the H82, H85 and H83 radio receiver assembly connectors.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H82-5 (ATX+) - H82-15 (ATX-)	Always	60 to 80 Ω
   H85-9 (TXM+) - H85-10 (TXM-)	Always	60 to 80 Ω
   H83-9 (TX+) - H83-10 (TX-)	Always	60 to 80 Ω

   TEXT IN ILLUSTRATION



   *a	Component without harness connected (Radio Receiver Assembly)

NG → See step   6

OK: Go to next step

HINT:

• Start the check from the circuit that is near the component shown by the sub-code first.
• For details of the connectors, refer to Terminals of ECU. Refer to TERMINALS OF ECU [06/2012 - ] .

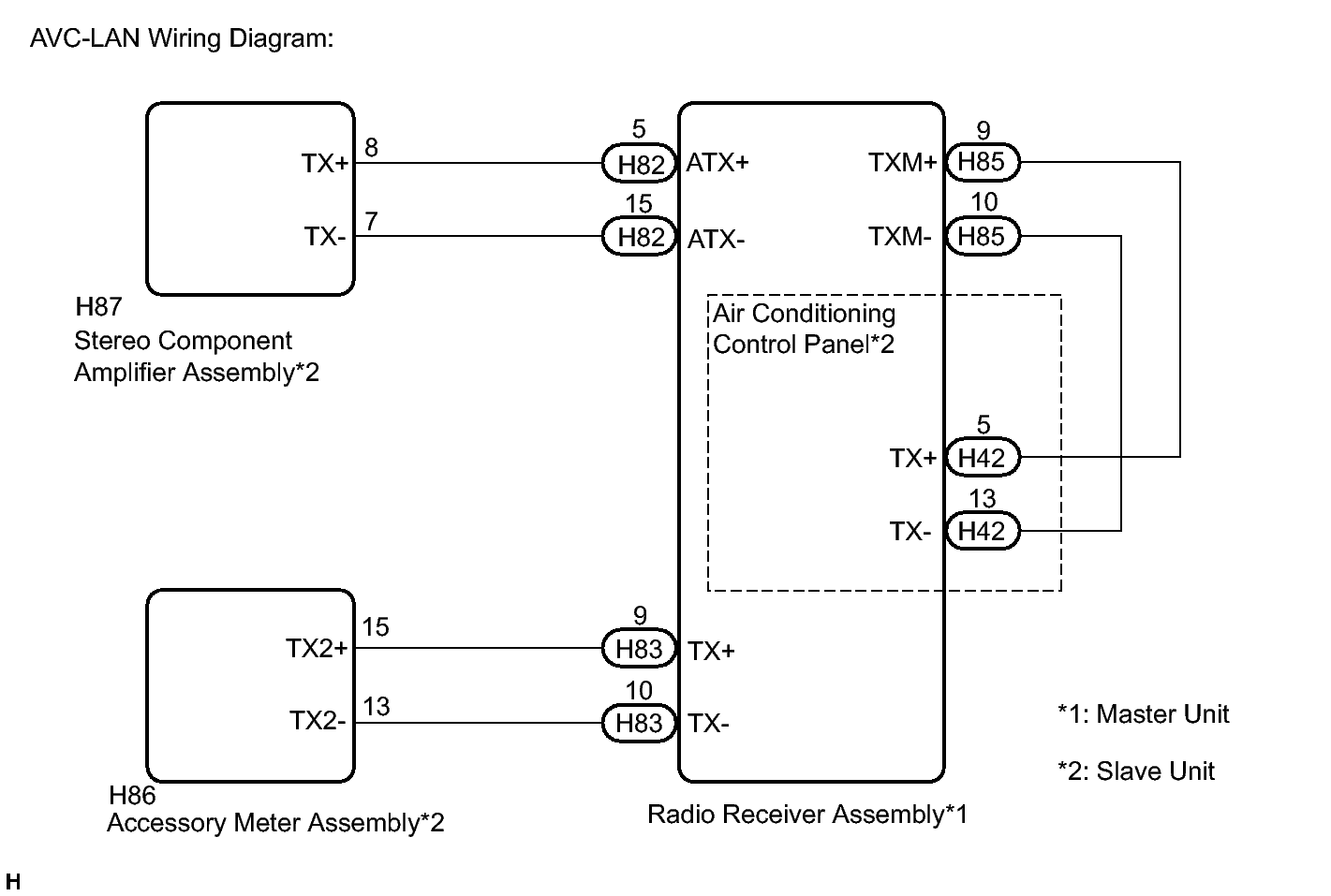

1. Referring to the following AVC-LAN wiring diagram, check the AVC-LAN circuit between the accessory meter assembly and component shown by the sub-code.
   1. Disconnect all connectors between the accessory meter assembly and component shown by the sub-code.
   2. Check for an open or short in the AVC-LAN circuit between the accessory meter assembly and component shown by the sub-code.

      OK

      There is no open or short circuit.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Replace the component shown by the sub-code with a known good one and check if the same problem occurs again.

   OK

   Malfunction disappears.

NG → See step   7

OK → END
