DTC B1262: A/C ECU Communication Stop: Wiring Diagram

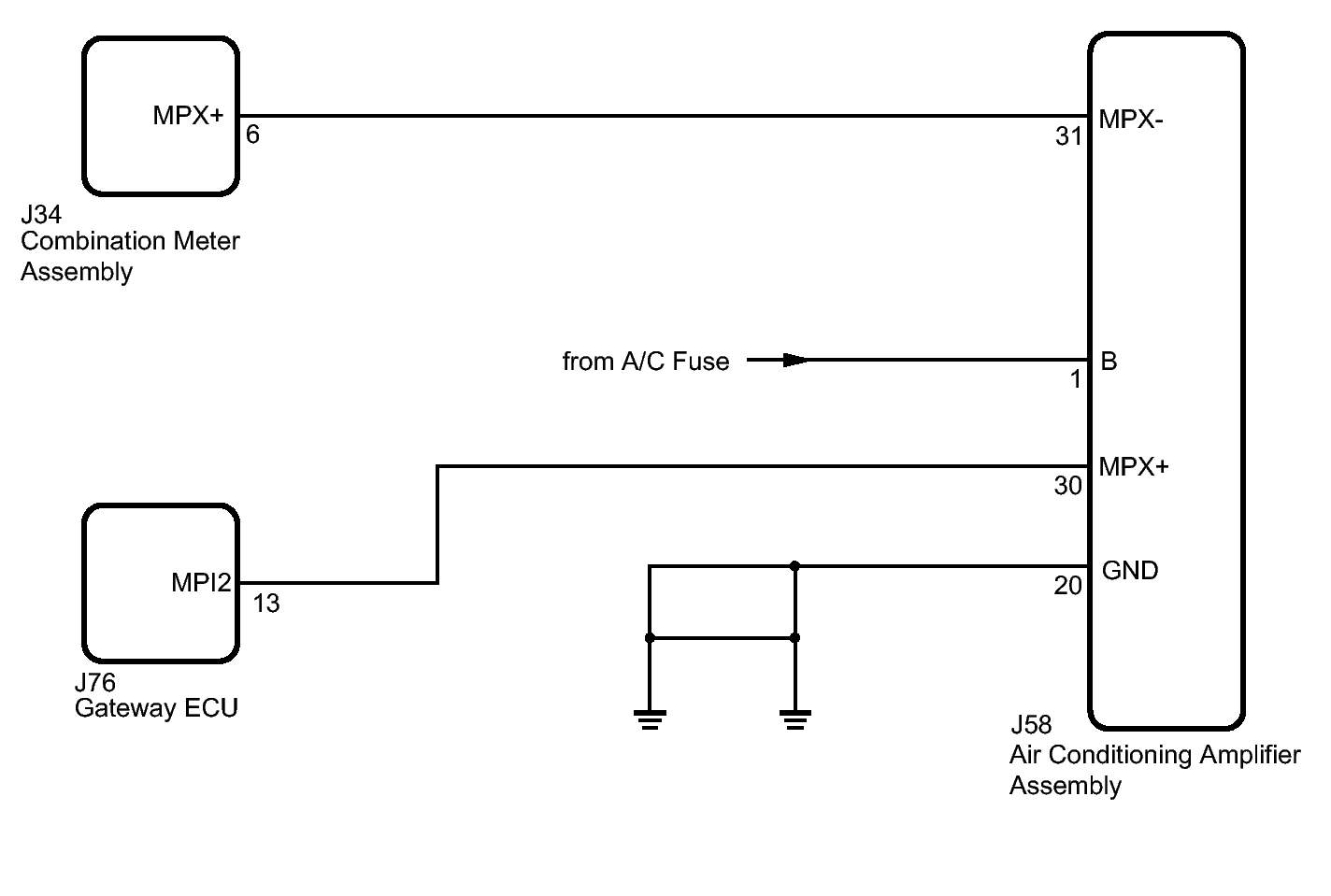

Fig 1: Identifying A/C ECU Communication Wiring Diagram

GTY357845

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
