DTC B2289: Key Collation Waiting Time Over: Description

This DTC is output when there is a LIN communication problem between the power source control ECU and certification ECU or when there is a problem in the engine immobilizer system.

DTC No. DTC Detection Condition Trouble Area
B2289 Either condition below is met:
  • Cable and BEAN are abnormal between power source control ECU and immobilizer system
  • Immobilizer system is malfunctioning
  • Power source control ECU
  • Entry function
  • Engine immobilizer system
  • Power switch
  • Key
  • Wire harness

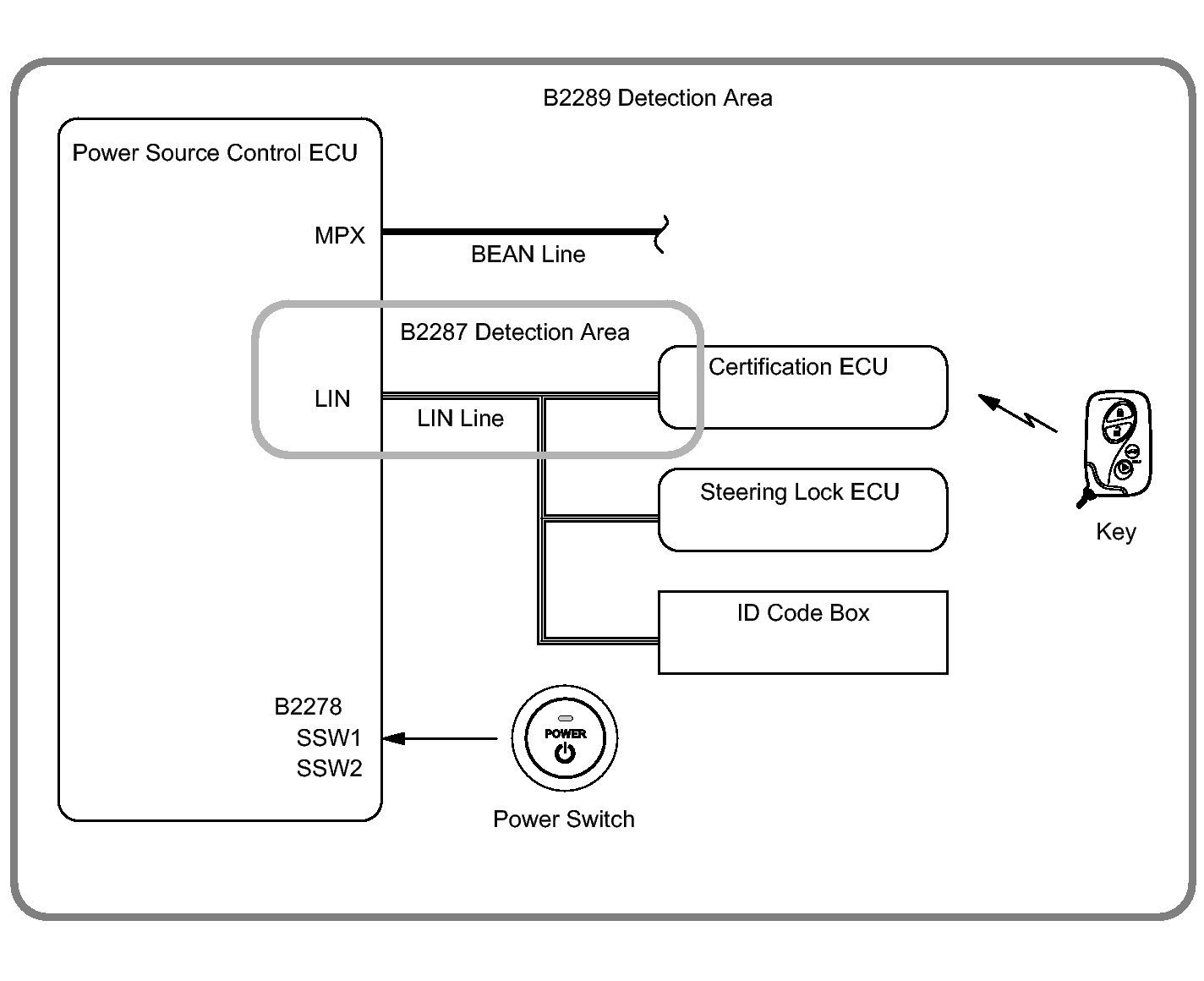

Fig 1: Key Collation Waiting Time - Communication Diagram
GTY133470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
