DTC U0130: Lost Communication with Steering Effort Control Module: Wiring Diagram

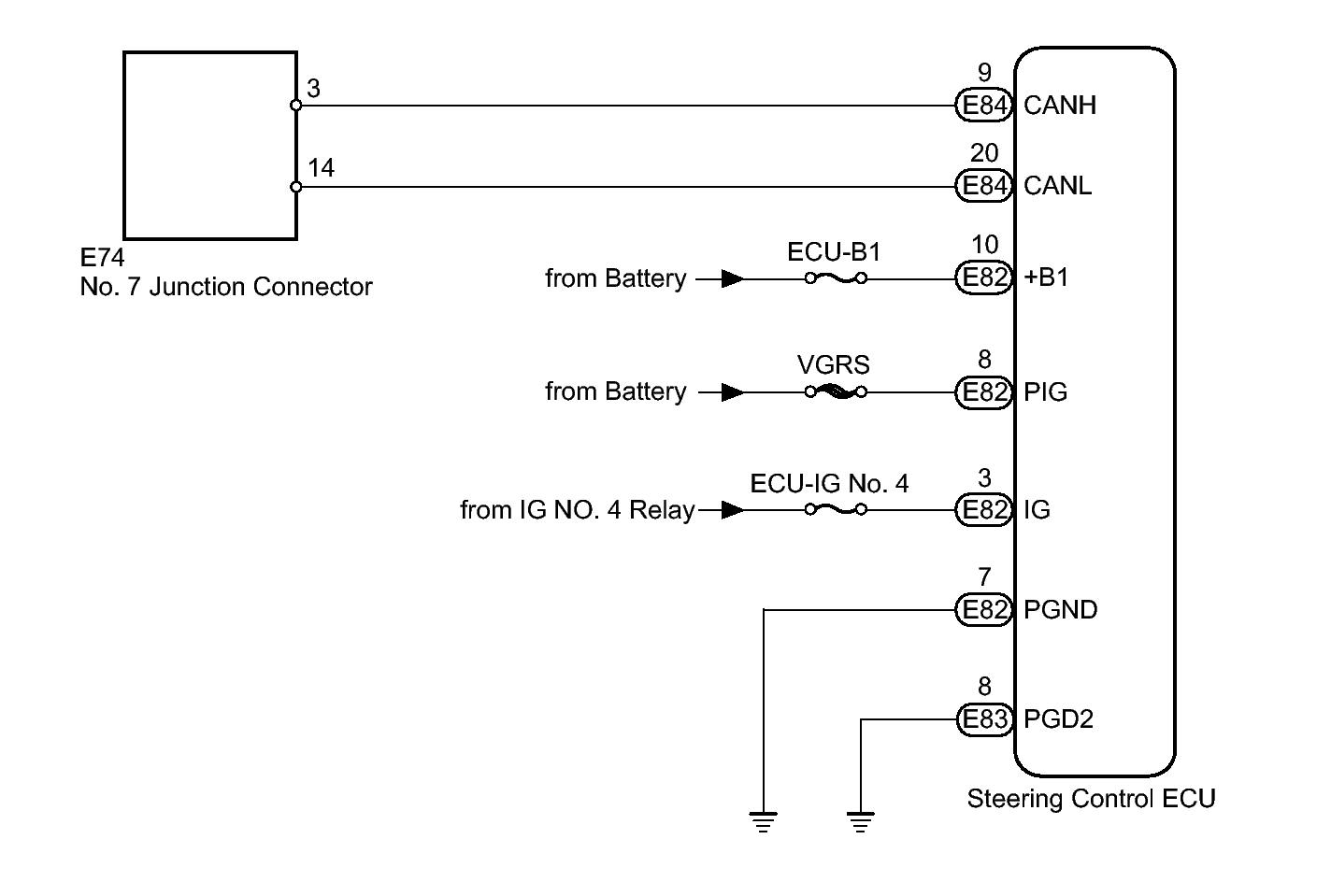

Fig 1: Steering Effort Control Module - Wiring Diagram

GTY149282

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
