Diagnostic Trouble Code Chart

WARNING: This page is about a different car, the 2005 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.
DIAGNOSTIC TROUBLE CODE CHART

DTC Description
DTC B1244  LIGHT SENSOR CIRCUIT MALFUNCTION
DTC B2410, B2411  HEADLIGHT SWIVEL ECU LH/RH COMMUNICATION MALFUNCTION
DTC B2412, B2413  HEADLIGHT SWIVEL MOTOR LH/RH MALFUNCTION
DTC B2414  STEERING POSITION SENSOR MALFUNCTION
DTC B2415  VEHICLE SPEED SENSOR MALFUNCTION
DTC B2416  HEIGHT CONTROL SENSOR MALFUNCTION
DTC B2417  HEADLIGHT BEAM LEVEL CONTROL MOTOR LH MALFUNCTION
DTC B2419  BEAN COMMUNICATION MALFUNCTION
DTC B2420  AFS ECU MALFUNCTION
DTC B2421  STEERING NEUTRAL POINT AUTOMATIC CORRECTION INCOMPLETION
DTC B2423  AFS ECU INSTALLATION ERROR
  1. DTC CHECK

    If a malfunction code is displayed during the DTC check, check the suspected area listed for that code in the table below, and proceed to the appropriate page.

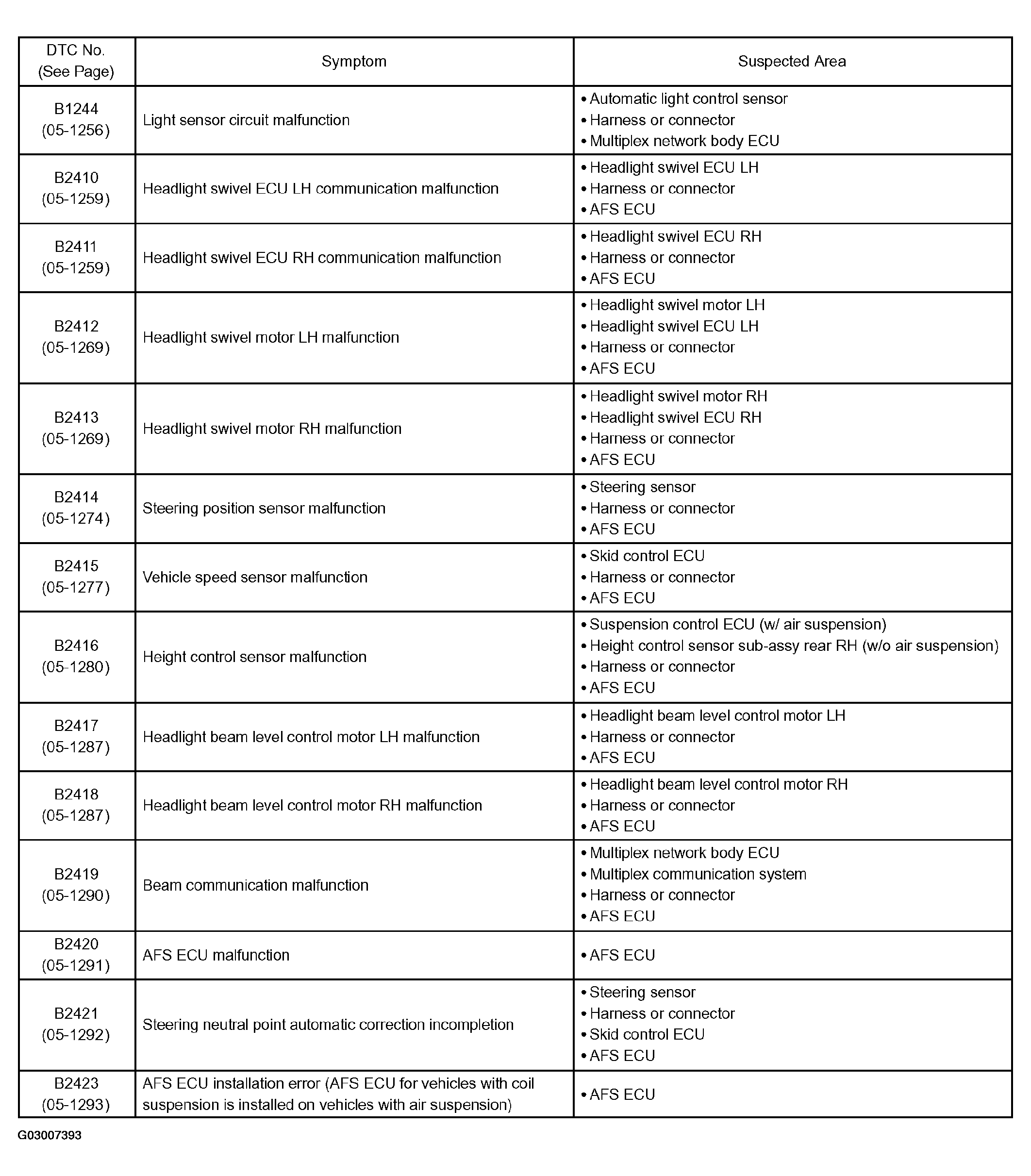

    Fig 1: Diagnostic Trouble Code Information Chart
    G03007393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
