Cruise Control Ecu ASSY: Replacement

  1. REMOVE FRONT DOOR SCUFF PLATE LH (See  REPLACEMENT  )
  2. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY LOWER (See  REPLACEMENT  )
  3. REMOVE CRUISE CONTROL ECU ASSY
    1. Disconnect the connector.
    2. Remove the nut and cruise control ECU (distance control ECU) assy.

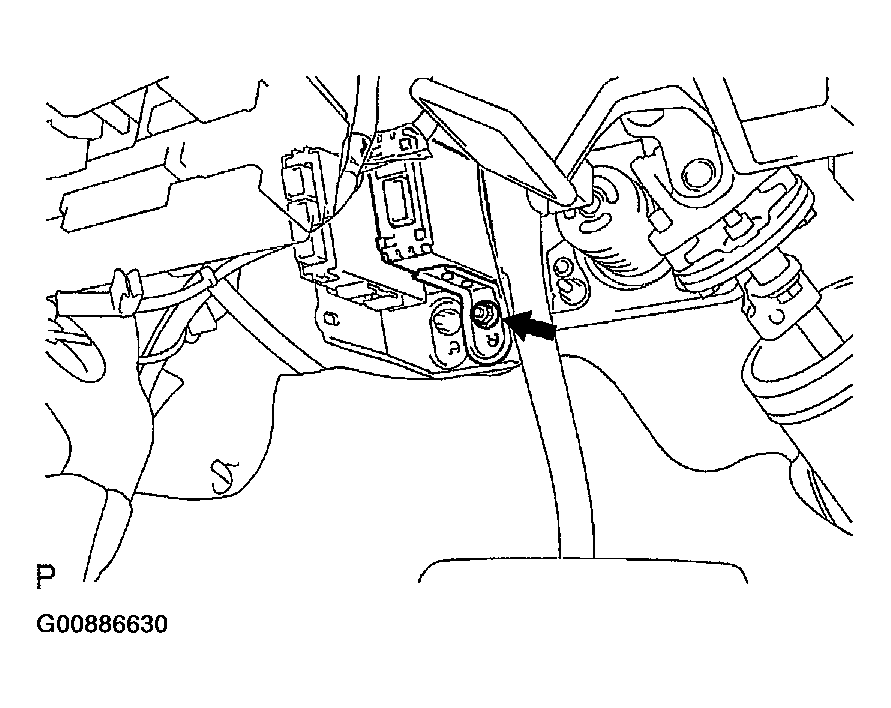

      Fig 1: Removing Cruise Control ECU Assy
      G00886630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL CRUISE CONTROL ECU ASSY
    1. Install the cruise control ECU (distance control ECU) assy with the nut.
      NOTE: Do not install the cruise control ECU (distance control ECU) assy if it has been damaged or received some sort of shock.
