Automatic Transaxle - Diagnosis: Location

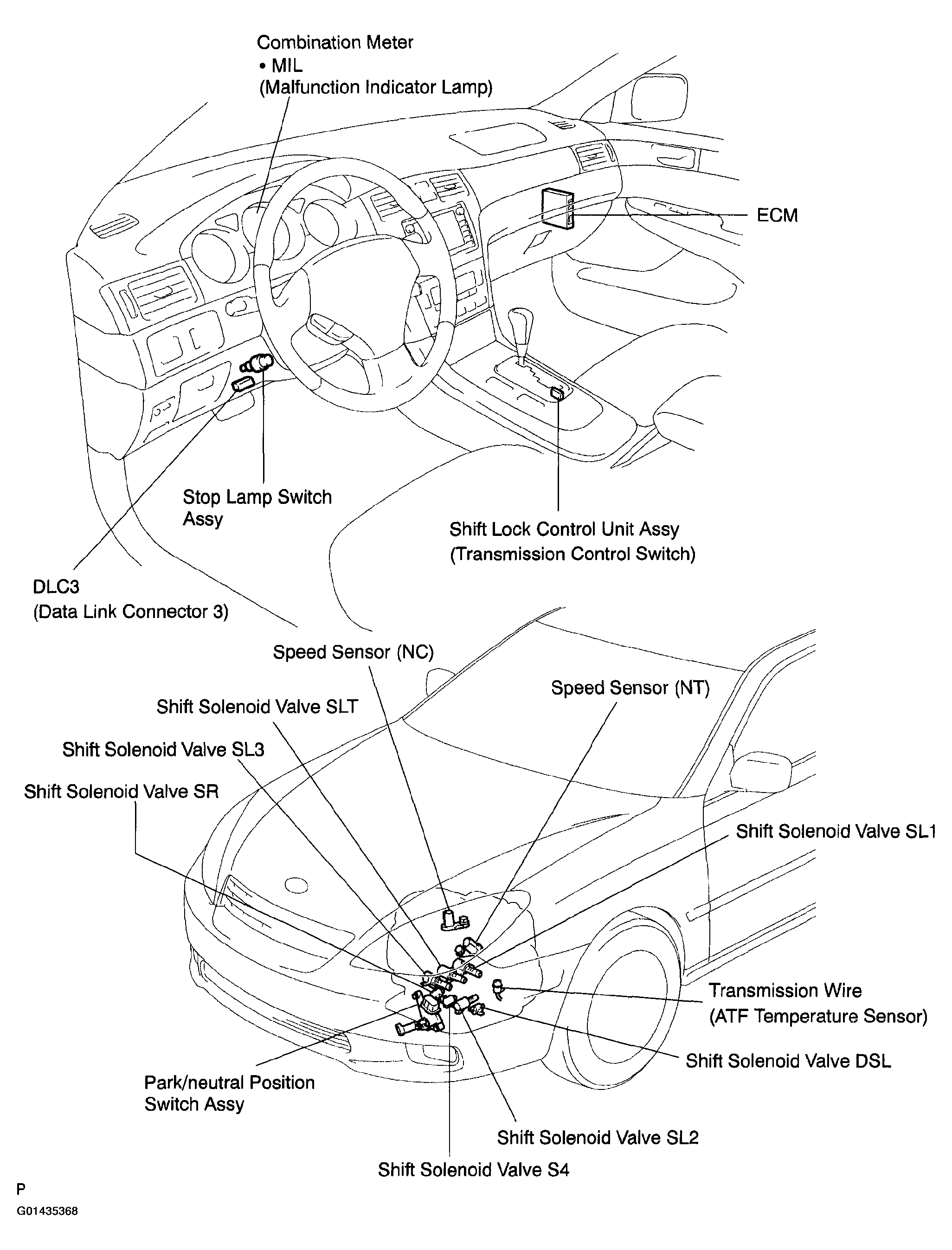

Fig 1: Locating Components Of Electronic Controlled Automatic Transaxle

G01435368

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
