Home >> Lexus >> 2003 >> ES 300 >> Repair and Diagnosis (Single Page) >> Body & Frame >> Seats >> Front Power Seat Control System (With Memory) - Diagnosis >> Memory Switch Circuit >> Wiring Diagram

Memory Switch Circuit: Wiring Diagram

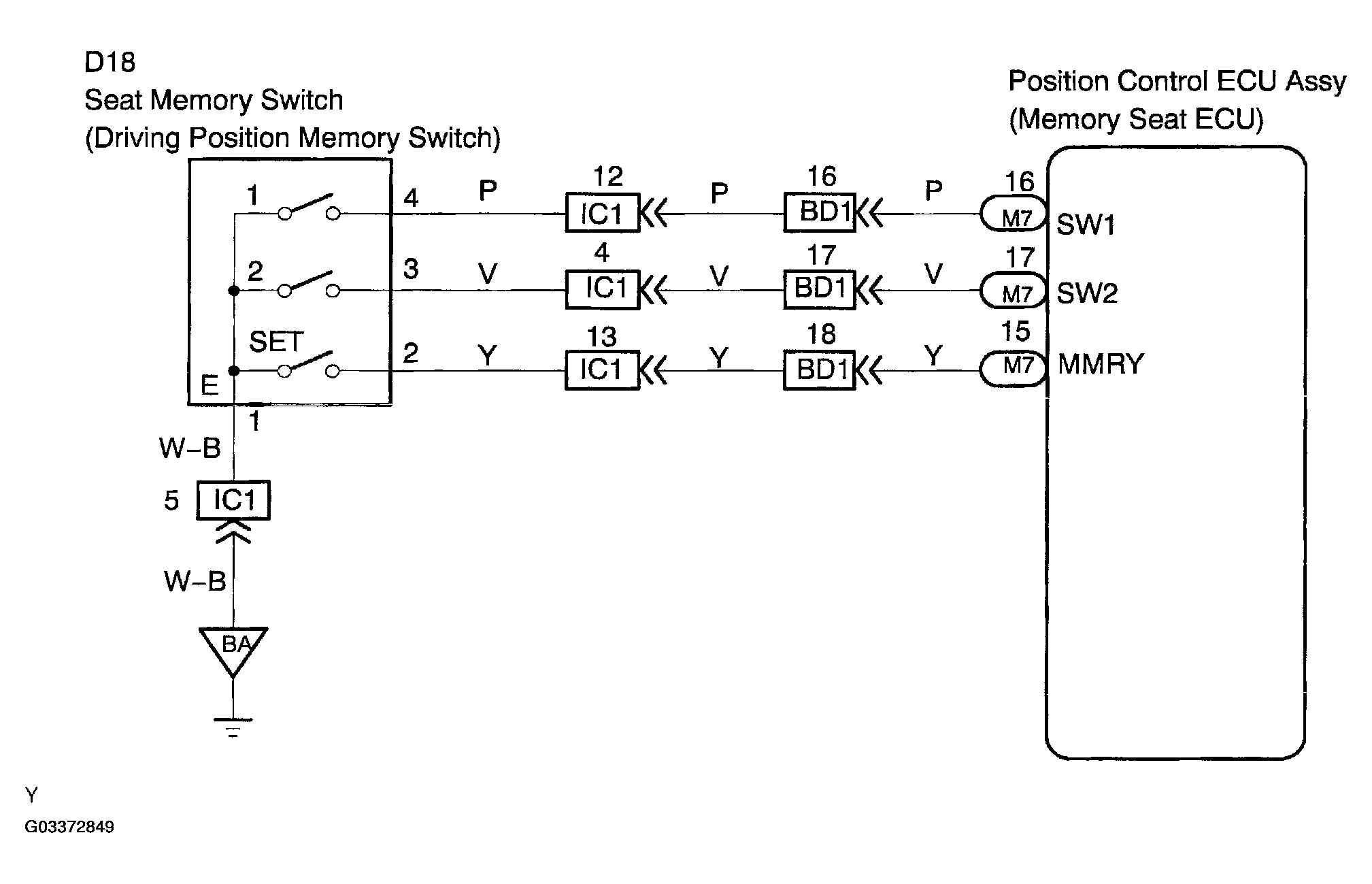

Fig 1: Memory Switch Circuit - Wiring Diagram

G03372849

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
