Data List

NOTE: According to the DATA LIST displayed by the hand-held tester, it is possible to read the value of the switch, sensor, actuator and so on without parts removal. Reading the DATA LIST as a first step of troubleshooting is one method to shorten labor time.

Connect the hand-held tester to the DLC3. See Figure.
Turn the ignition switch ON.
According to the display on tester, read the "DATA LIST". See Fig 1-Fig 3 .

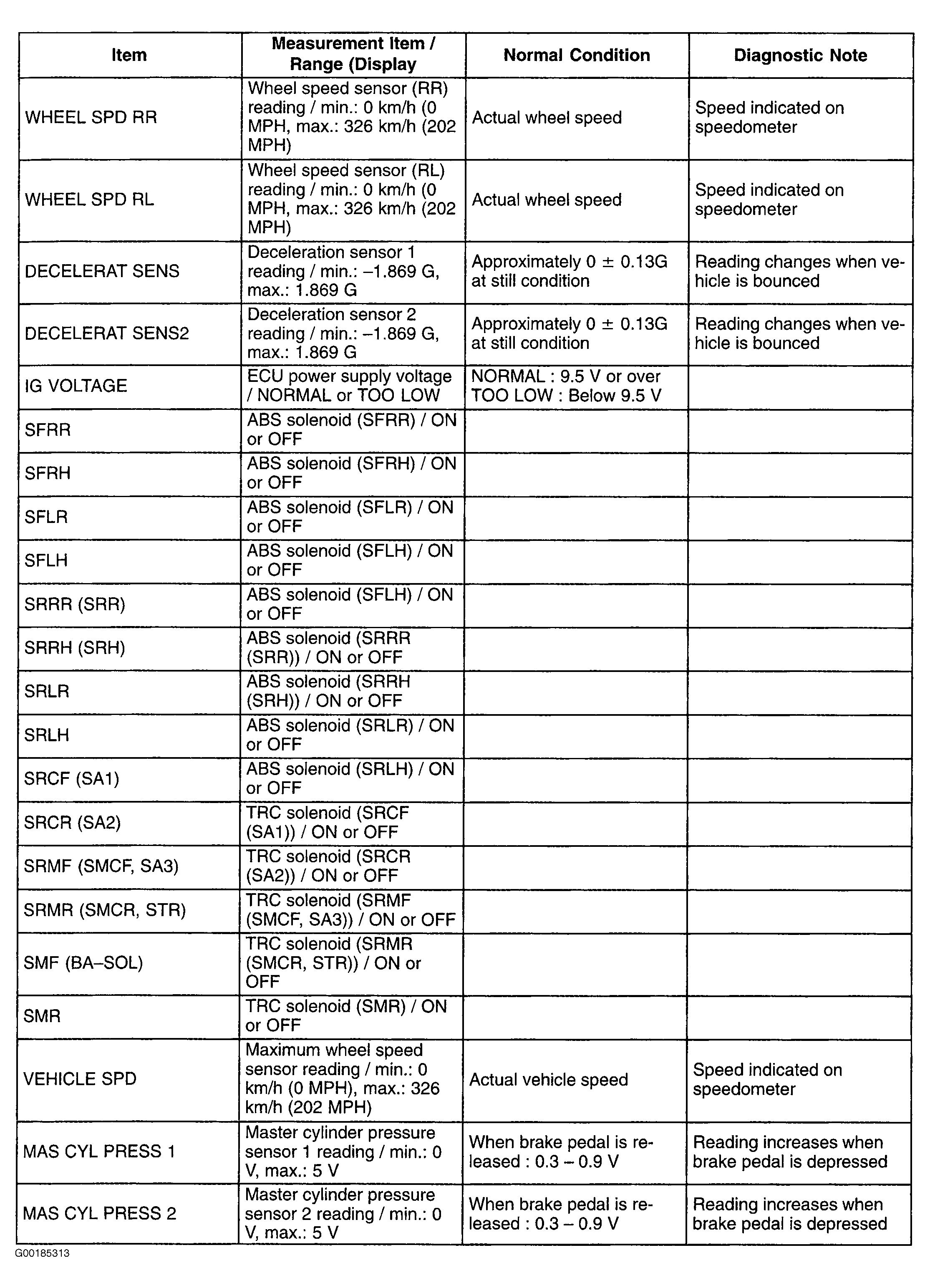

Fig 1: Identifying Data List (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

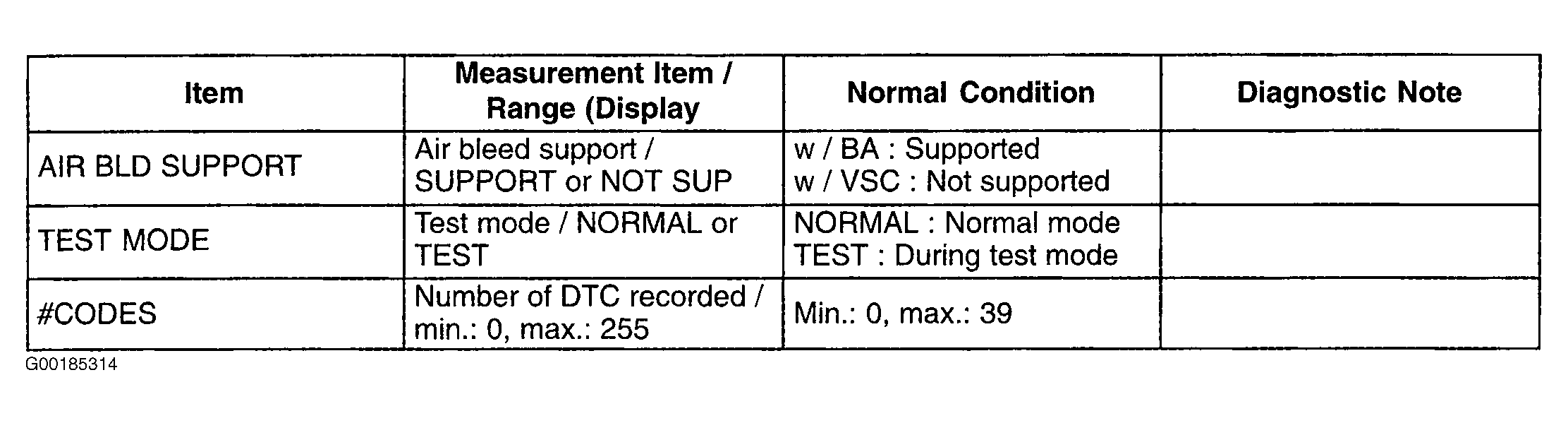

Fig 2: Identifying Data List (2 Of 3)

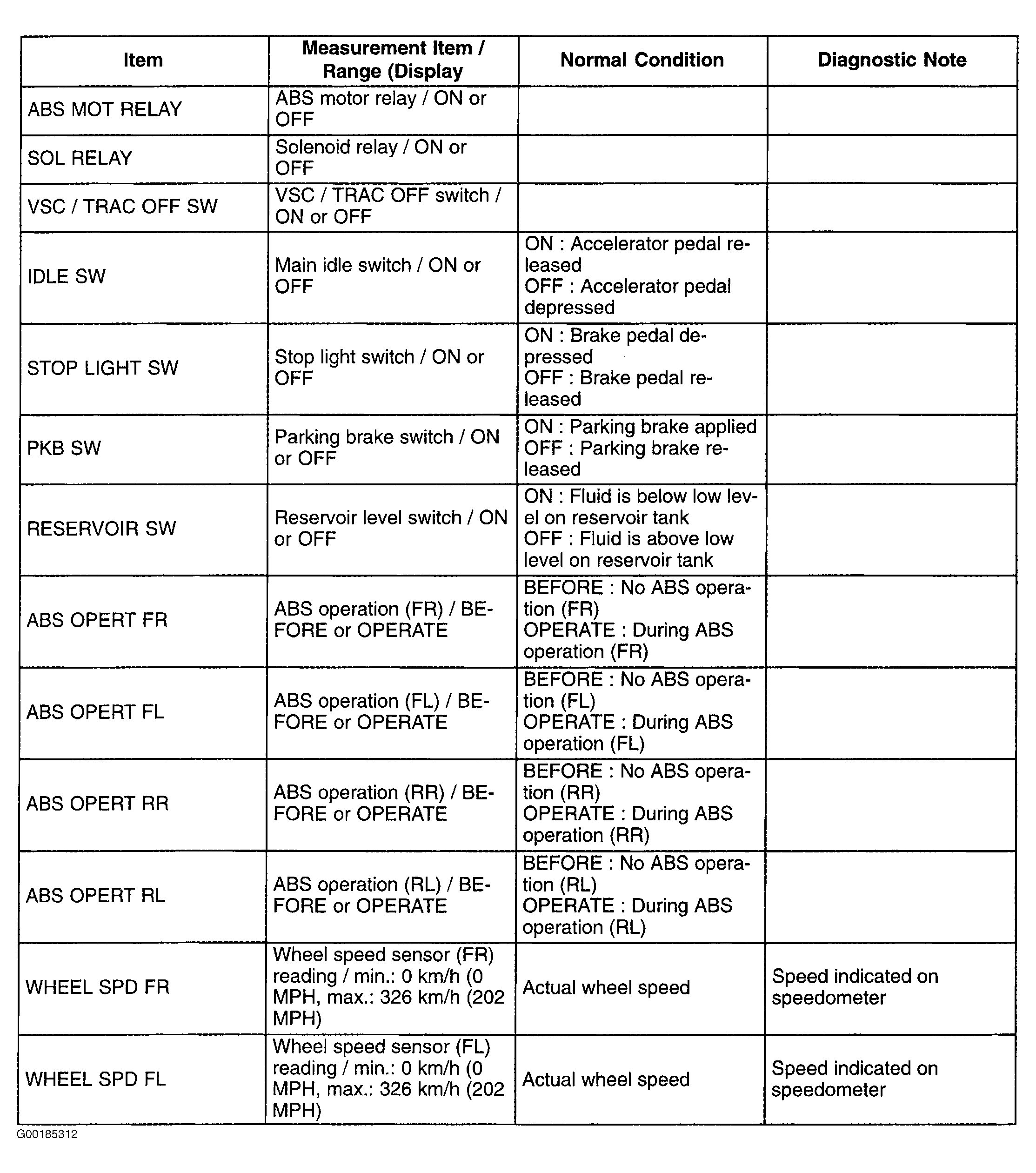

Fig 3: Identifying Data List (3 Of 3)
