Repair Procedures: Removal

Disconnect the negative battery terminal.
NOTE: After disconnecting the cables, wait at least 30 seconds.

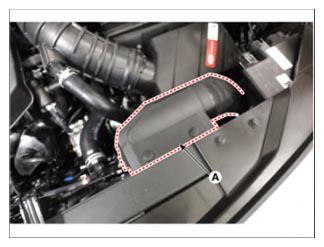

Remove the air duct (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front impact sensor (A) by loosening the nut after disconnecting the connector (B).
Tightening torque:

6.9 - 7.8 N.m (0.7 - 0.8 kgf.m, 5.1 - 5.8 lbf.ft)

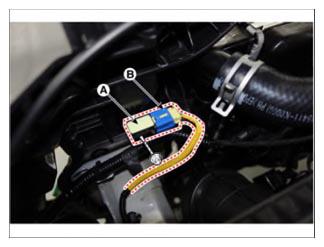

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

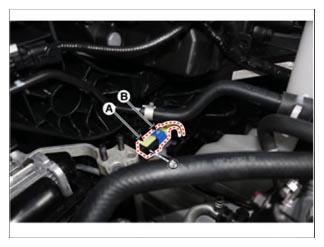

[RH]

Courtesy of KIA MOTORS AMERICA, INC.
