Repair Procedures: Removal

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Disconnect the battery negative (-) terminal.
Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")

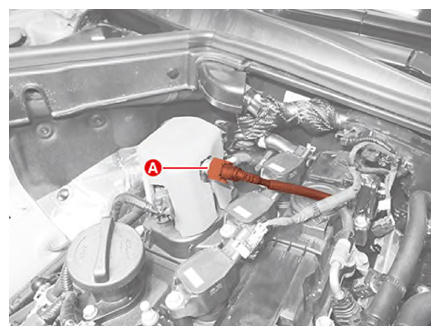

Separate the low pressure fuel tube quick-connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

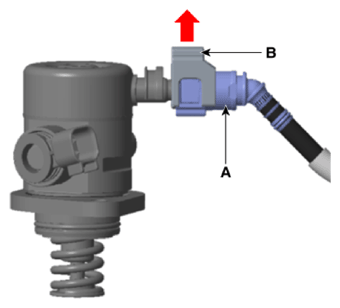

Pull the cover (B) of the fuel feed tube quick-connector (A) in the direction of arrow.

Courtesy of KIA MOTORS AMERICA, INC.

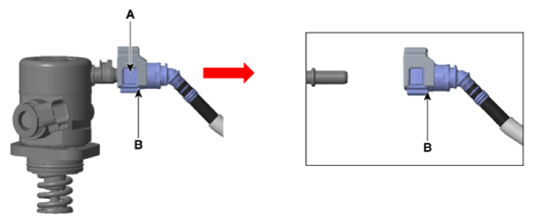

Separate the fuel feed tube quick-connector (B) by pushing the button (A) and pulling it in the direction of arrow.

Courtesy of KIA MOTORS AMERICA, INC.

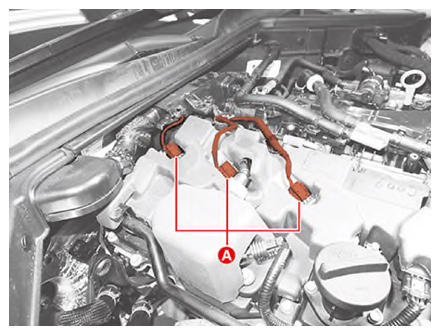

Disconnect the ignition coil connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

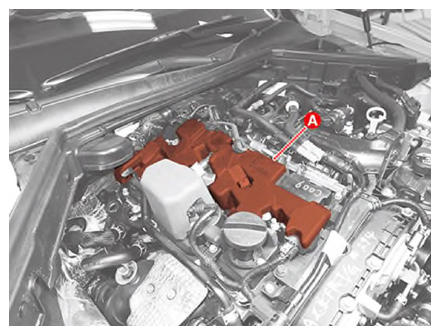

Remove the engine foam (A).

Courtesy of KIA MOTORS AMERICA, INC.

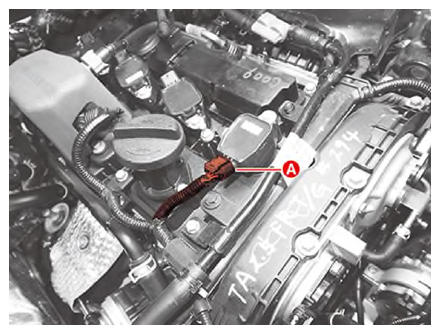

Disconnect the ignition coil connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

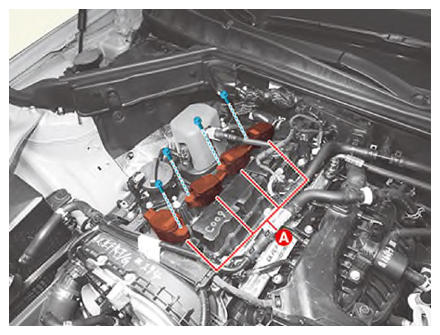

Remove the ignition coil (A) after removing the mounting bolt.
Tightening torque:

9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
