Repair Procedures: Removal

  1. Place the shift lever in the "N" position.
  2. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

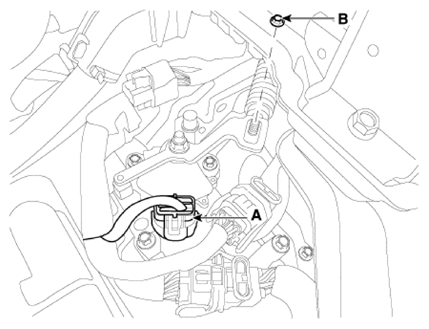

  3. Disconnect the inhibitor switch connector (A).
  4. Loosen the shift cable mounting nut (B).
    G13281085Courtesy of KIA MOTORS AMERICA, INC.

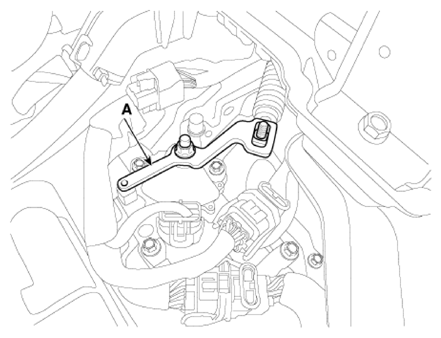

  5. Remove the manual control lever (A).
    G13281086Courtesy of KIA MOTORS AMERICA, INC.

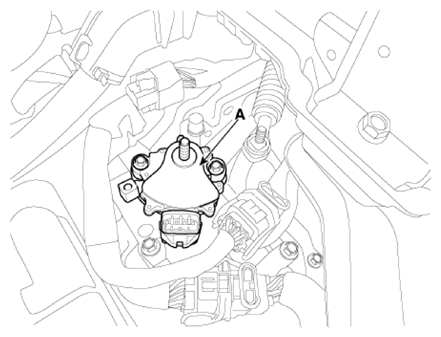

  6. Remove the inhibitor switch (A).
G13281087Courtesy of KIA MOTORS AMERICA, INC.
