Inhibitor Switch
>>
Components And Components Location
>>
Component Location
Component Location

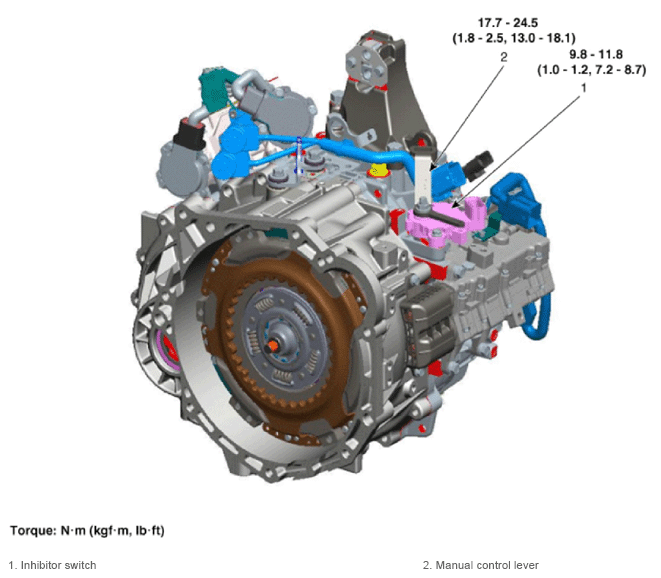

Fig 1: Inhibitor Switch Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
