Repair Procedures: Installation
- Install in the reverse order of removal.
NOTE:
- Check the following before installing the gear actuator assembly.
- Check that the gear actuator is placed in the "neutral" state.

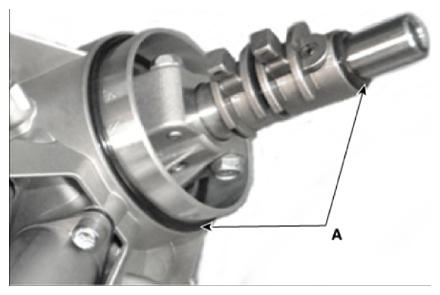

- Check the assembled state of the O-rings (A).
- Apply gear oil to the surface of O-rings.

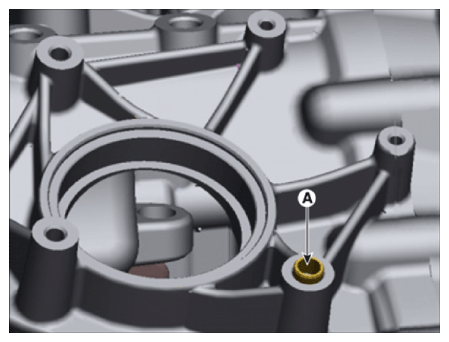

- Check the assembled state of the dowel pins (A).

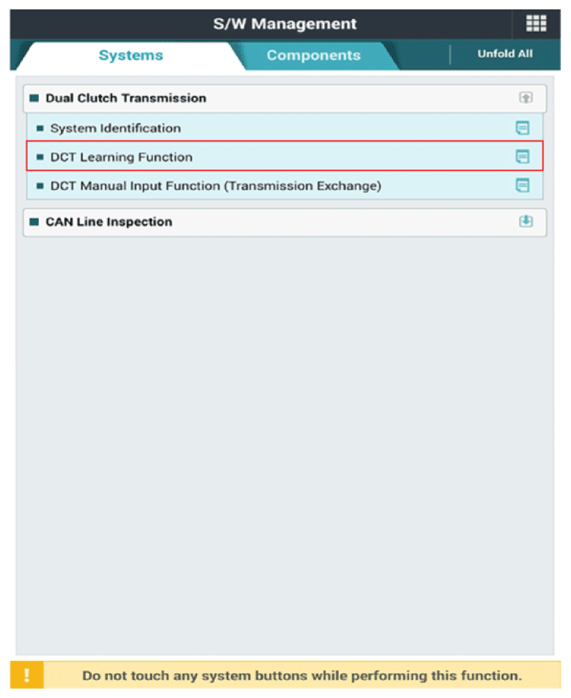

- Perform the clutch touch point learning procedure using the KDS after replacing the gear actuator assembly.
