Resetting Adaptive Values

Connect KDS to DLC (Data Link Cable).
Ignition "ON" & ENG "OFF"

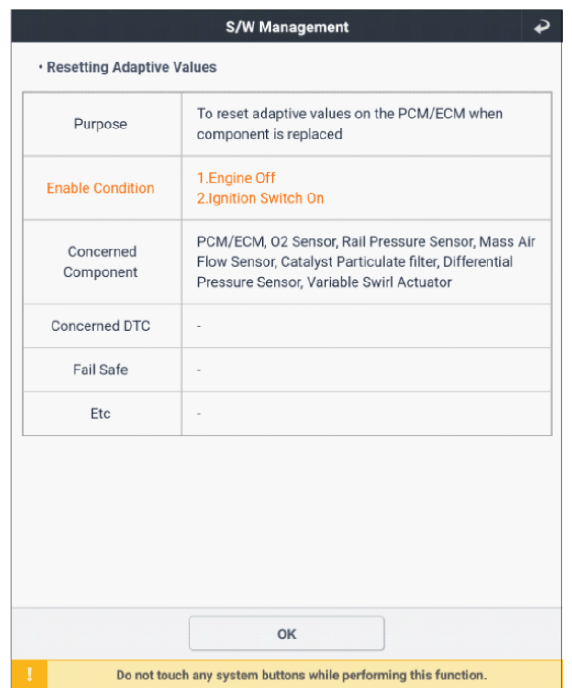

Select the "Vehicle S/W Management" about related DTC with KDS.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

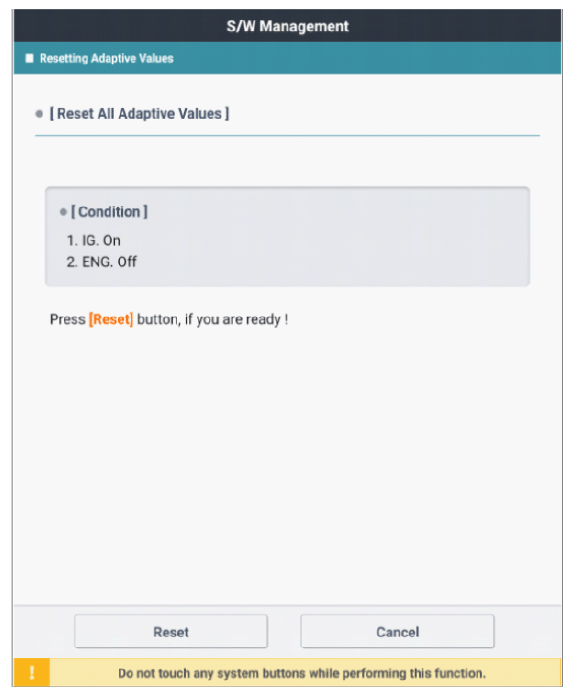

Fig.2) Press "Reset" button to progress for next procedure.

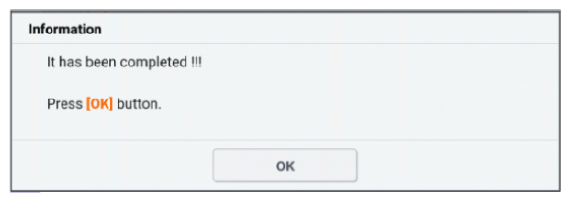

Fig.4) Completed.
When the "Resetting Adaptive Values" has been finished perfectly, press "OK" button and go to "VERIFICATION OF REPAIR " procedure.
