Soul Base, Standard Trans
>>
Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
System
>>
Engine Control System Diagnosis - 1.6L (3 Of 3)
>>
DTC P05CC: Cold Start 'A' Camshaft Position Timing Performance Bank 1
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data

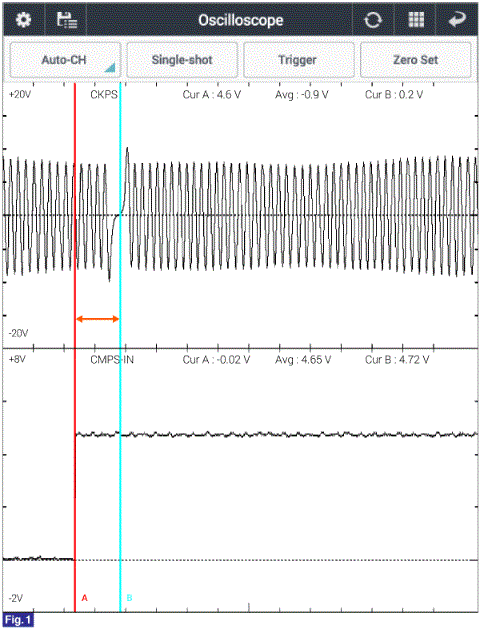

Fig 1: Scantool Display - Normal Waveforms Of CKPS And CMPS (Intake) At Idle
Courtesy of KIA MOTORS AMERICA, INC.
