Component Inspection

■ Perform ETC Motor Actuation Test

1. Connect KDS/GDS to Data Link Connector (DLC).
2. Ignition "ON" & Engine "OFF".
3. Perform "Actuation Test  " for ETC Motor.

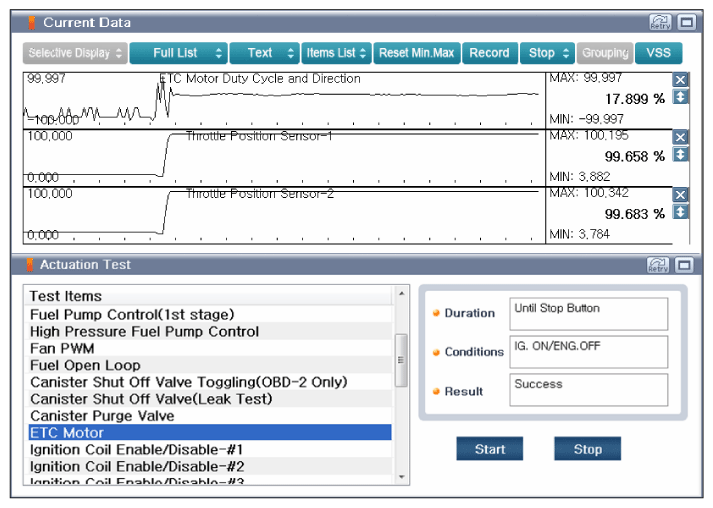

   Fig 1: Scantool Display - Current Data And Actuation Test

   Courtesy of KIA MOTORS AMERICA, INC.

■ ETC Motor Inspection

1. Ignition "OFF".
2. Disconnect ETC Motor connector.
3. Measure resistance between power and control terminal of the ETC Motor (component side).

   Specification  : Approx. 2 ~ 3Ω [20°C (68 °F)]

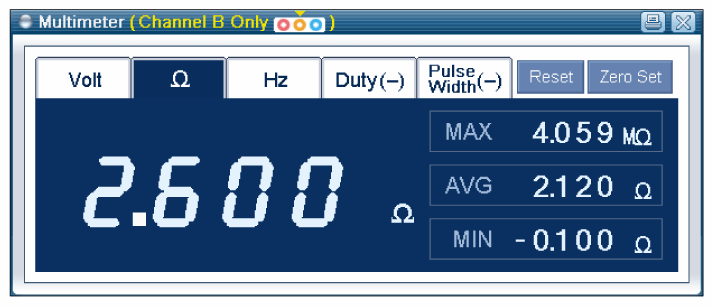

   Fig 2: Scantool Display - ETC Motor Resistance

   Courtesy of KIA MOTORS AMERICA, INC.

■ Confirm Part Inspection

1. Does the ETC Motor operate properly? (Check variation)

   YES

   • Go to "Verification of Vehicle Repair " procedure.

   NO

   • Carefully re-do this troubleshooting guide steps.
   • If problem still occurs, replace ETC Motor and then go to "Verification of Vehicle Repair " procedure.
