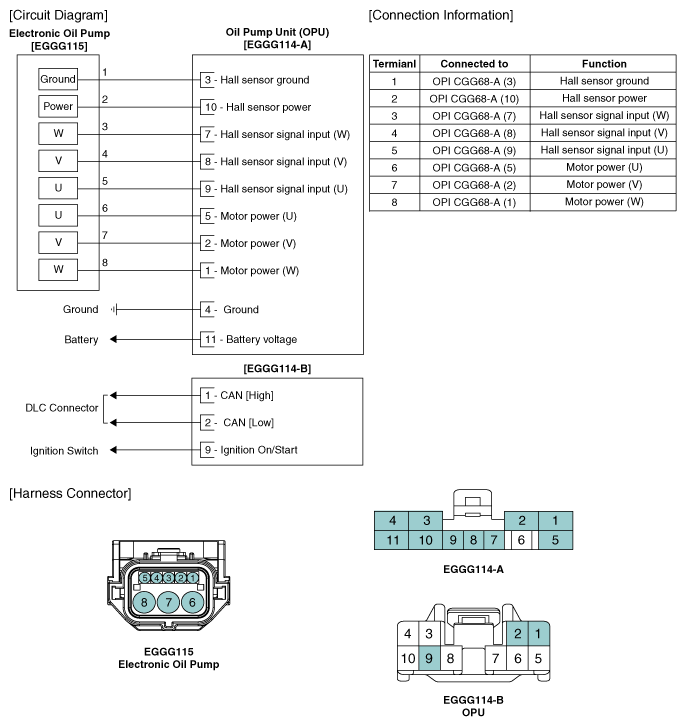

Home >> Kia >> 2017 >> Rio LX, 4D Hatchback >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Idle Stop And Go (ISG) System >> Oil Pump Unit (OPU) >> Schematic Diagrams >> Circuit Diagram
