Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

  3. Remove the fuel pump service cover (A).

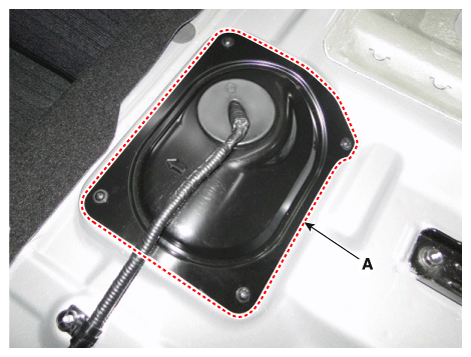

    Fig 1: Locating Fuel Pump Service Cover
    G11829913Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the fuel pump control module connector (A).
  5. Remove the fuel pressure control module (A) after removing the screws.

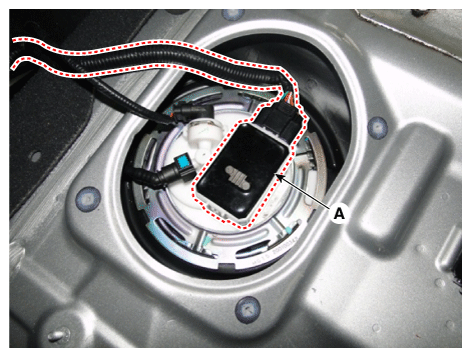

    Fig 2: Locating Fuel Pump Control Module Connector
    G11829914Courtesy of KIA MOTORS AMERICA, INC.
