Smart Junction Box Connector End View (I/P-F)

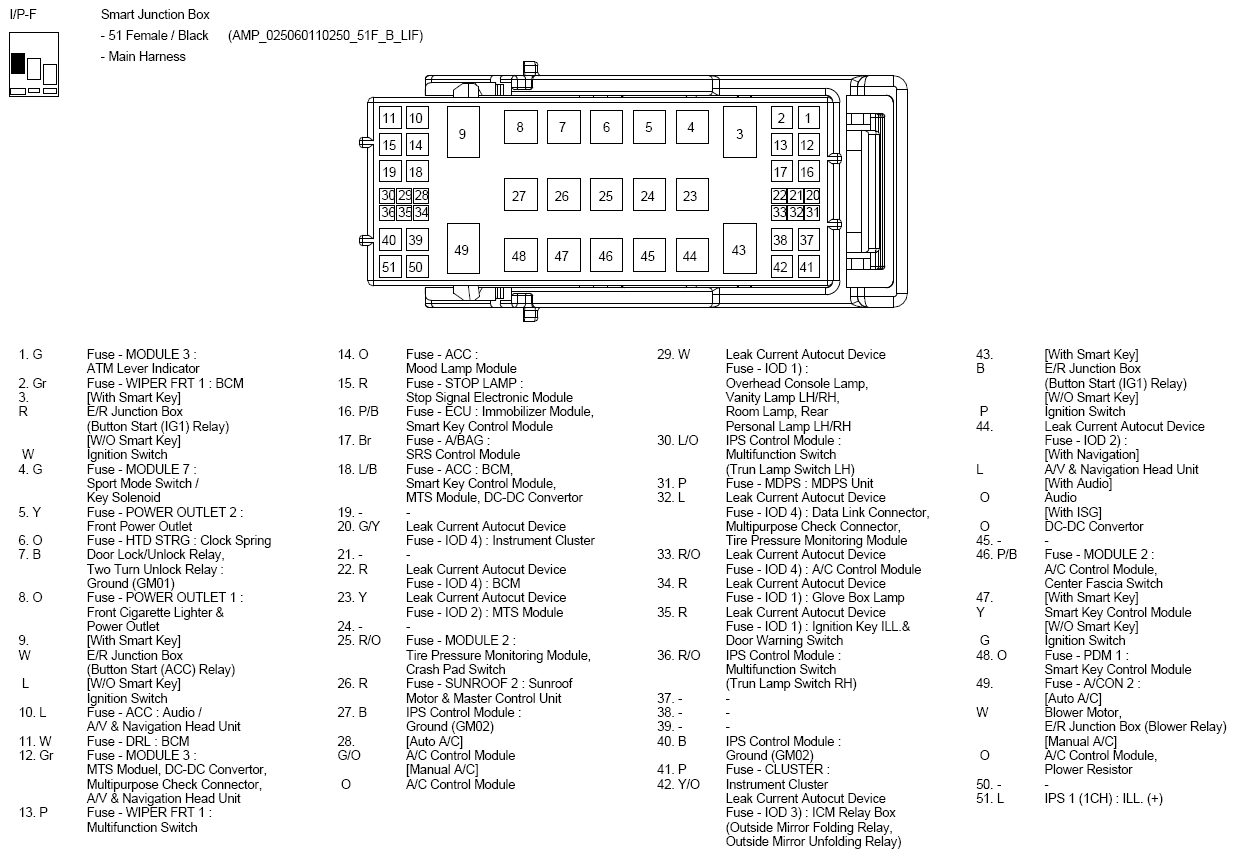

Fig 1: Smart Junction Box Connector End View (I/P-F)

G10793637

Courtesy of KIA MOTORS AMERICA, INC.
