Soul Base, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Lubrication System - 1.6L
>>
Flow Diagram
>>
Engine Oil Flow Diagram
Engine Oil Flow Diagram

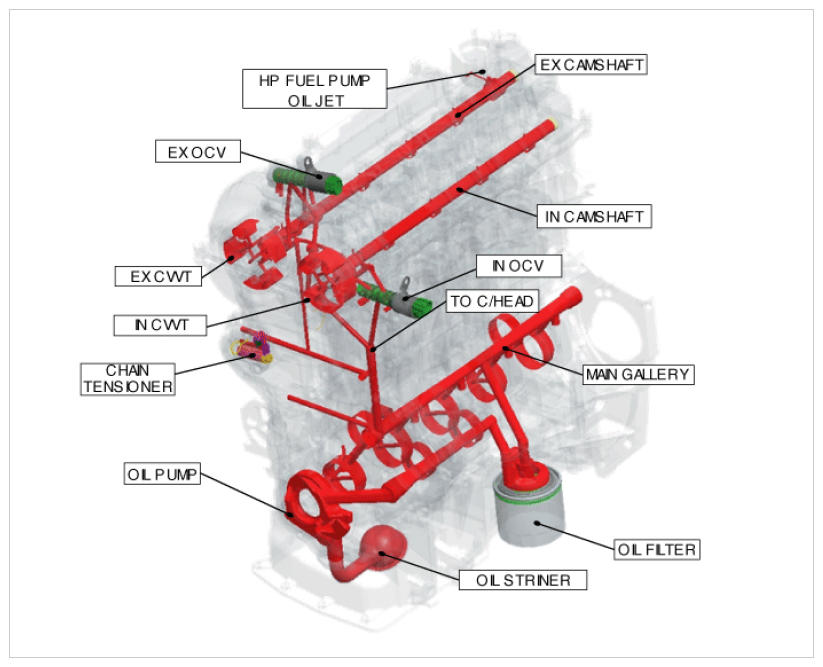

Fig 1: Engine Oil Flow Diagram (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

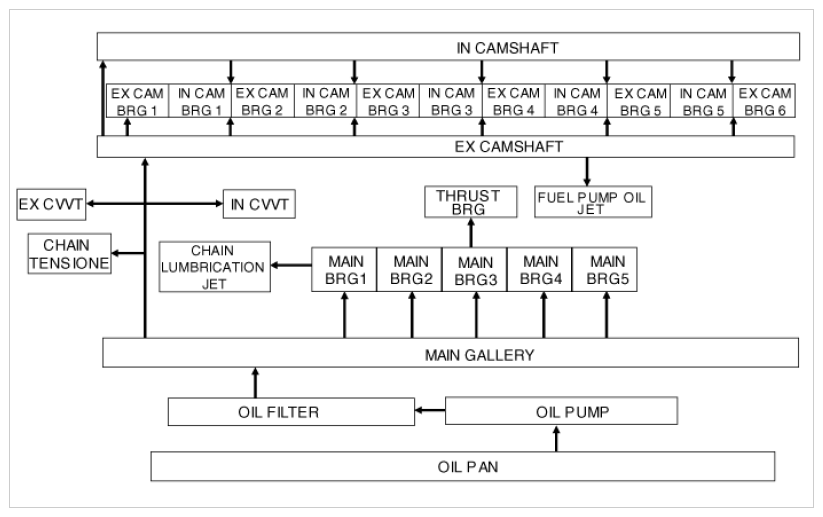

Fig 2: Engine Oil Flow Diagram (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
