Home >> Kia >> 2014 >> Forte EX >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System - 2.0L >> Battery >> Troubleshooting

Charging System - 2.0L: Battery: Troubleshooting

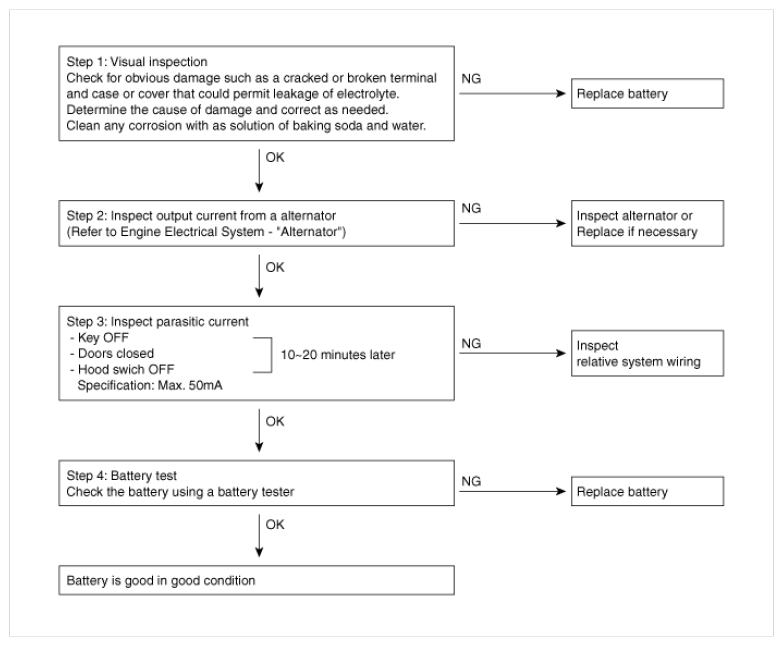

Fig 1: Troubleshooting Workflow Chart

G09742823

Courtesy of KIA MOTORS AMERICA, INC.
