Components and Components Location: Component

WARNING: This page is about a different car, the 2011 Hyundai Veracruz. However, it is still accessible from the selected car via links, so may be relevant.

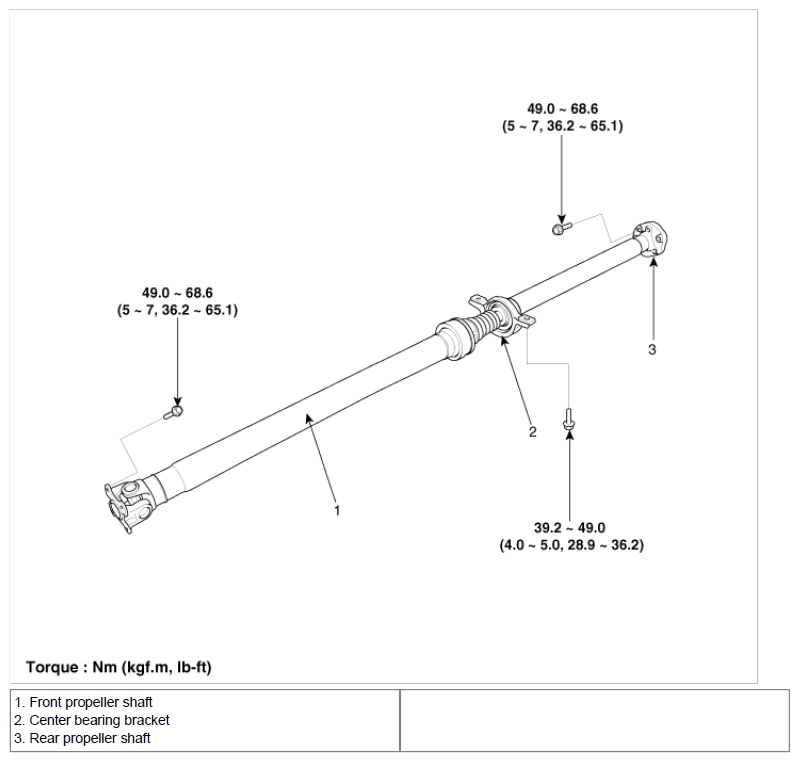

Fig 1: Propeller Shaft Replacement Components With Torque Specifications
G06857224Courtesy of HYUNDAI MOTOR CO.
