Repair procedures: Removal

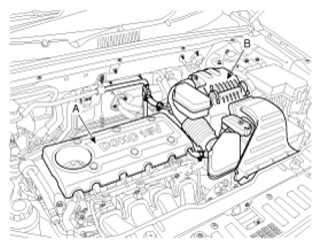

Remove the engine cover (A).
Remove the air cleaner assembly (B). (Refer to 'INTAKE AND EXHAUST SYSTEM ' in EM group)

Fig 1: Identifying Engine Cover And Air Cleaner Assembly
Courtesy of KIA MOTORS AMERICA, INC.

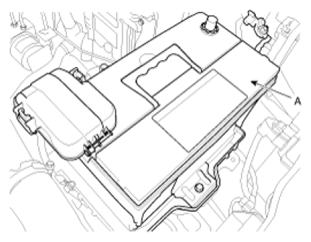

Remove the battery (A).

Fig 2: Identifying Battery
Courtesy of KIA MOTORS AMERICA, INC.

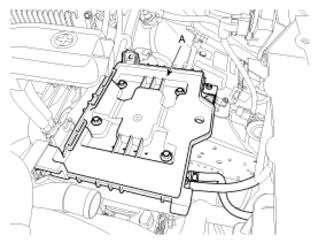

Remove the battery tray (A).

Fig 3: Identifying Battery Tray
Courtesy of KIA MOTORS AMERICA, INC.

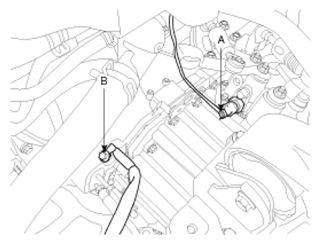

Disconnect the back up lamp switch connector (A).
Remove the ground (B).

Fig 4: Identifying Back Up Lamp Switch Connector And Ground
Courtesy of KIA MOTORS AMERICA, INC.

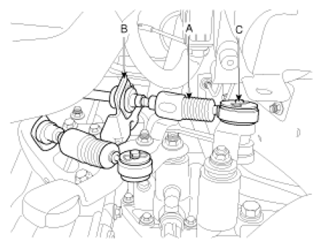

Disconnect the cable assemblies (A) after removing the clips (B) and pins (C).

Fig 5: Identifying Cable Assemblies, Clips And Pins
Courtesy of KIA MOTORS AMERICA, INC.

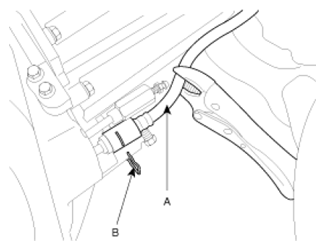

Remove C.S.C (Concentric Slave Cylinder) tube(A) which is being clamped by disconnecting the clip(B).

Fig 6: Identifying Concentric Slave Cylinder Tube And Clip
Courtesy of KIA MOTORS AMERICA, INC.

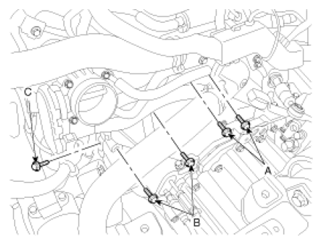

Remove the mounting bracket bolt (C).
Remove the transaxle upper mounting bolts (A-2ea) and the starter motor mounting bolts (B-2ea).
Tightening torque :

42.2~53.9N.m(4.3~5.5kgf.m, 31.1~39.8lb-ft)

Fig 7: Identifying Transaxle Upper Mounting Bolts (A-2Ea) And Starter Motor Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

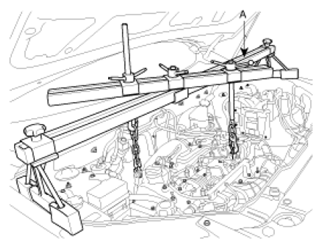

Using the special tool (A) (09200-38001), support the engine transaxle assembly safely.

Fig 8: Supporting Engine Transaxle Assembly Using Special Tool (09200-38001)
Courtesy of KIA MOTORS AMERICA, INC.

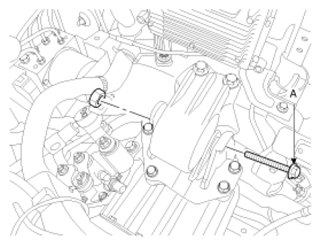

Remove the insulator bracket bolts (A).
Tightening torque :

58.8~78.5N.m(6.0~8.0kgf.m, 43.4~57.9lb-ft)

Fig 9: Identifying Insulator Bracket Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Supporting the sub frame with a jack and the Special tool(09624-38000), remove the mounting bolts. (Refer to FRONT SUB FRAME 'Sub frame' in SS group.

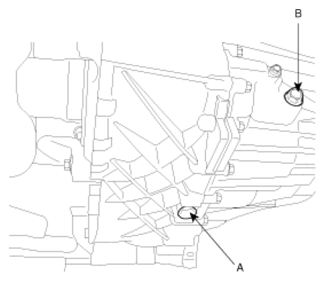

Drain the manual transaxle fluid after removing the transaxle drain plug(A). It can be easier when the oil filler plug (B) is removed.
Tightening torque :

(A) 58.5~78.5N.m (6.0~8.0kgf.m, 43.4~57.9lb-ft)

(B) 29.4~34.3N.m (3.0~3.5kgf.m, 21.7~25.3lb-ft)

Fig 10: Identifying Transaxle Drain Plug And Oil Filler Plug
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the driveshafts from the transaxle (Refer to 'DRIVESHAFTS ASSEMBLY ' in DS group).
Remove the transfer assembly. (Refer to 'TRANSFER ASSEMBLY ' in WD group).

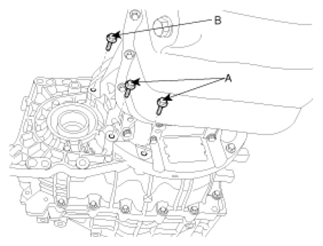

Remove the transaxle lower mounting bolts (A-3ea, B-3ea)
Tightening torque :

42.2~48.1N.m (4.3~4.9kgf.m, 31.1~35.4lb-ft)

Fig 11: Identifying Transaxle Lower Mounting Bolts (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

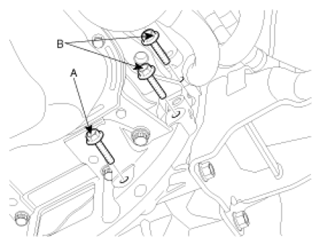

Fig 12: Identifying Transaxle Lower Mounting Bolts (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Lowering the jack slowly, remove the transaxle.
CAUTION: When removing the transaxle assembly, be careful not to damage any surrounding parts or body components.
