Monitor Scan Tool Data

  1. IG "OFF" & connect scan tool.
  2. ENG "ON" and warm -up the engine to normal operating temperature.
  3. Monitor "Brake Switch" parameter on the service data with stepping on and off the brake.

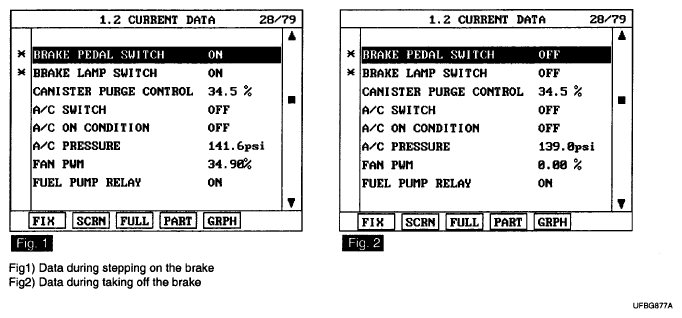

    Fig 1: Scan Tool Display Screen - Brake Switch
    G04883504Courtesy of KIA MOTORS AMERICA, INC.
  4. Are those related current data displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in Sensor' s and/or PCM' s connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure

    NO
