Power Circuit Inspection

IG "OFF".
Disconnect the instrument cluster harness connector.
Measure the voltage between terminal 11/M09-1 of harness connector and ground.
Specification: B+

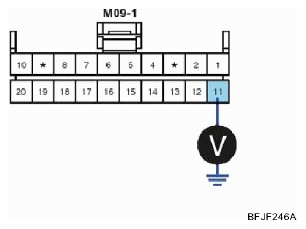

Fig 1: Measuring Voltage Between Terminal 11/M09-1 Of Harness Connector And Ground
Courtesy of KIA MOTORS AMERICA, INC.
Is the measured voltage within specification?
YES
- Go to "CONTROL CIRCUIT INSPECTION " procedure.
NO
- Check the fuse (ECU A 30A) between battery and cluster.
- Repair Open or Short in power circuit and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
