Engine Compartment Fuse/Relay Box: Notes

Engine compartment fuse/relay box (Junction box) is located under engine compartment shroud on driver's side of engine compartment, at fender panel. See Fig 1.

To check the fuses or relays in the engine compartment, turn the ignition switch and all other switches off. Remove the fuse box cover by removing the bolt on the cover and unhooking the tab on one end and tilting the cover back toward the other end. Check the fuses. If one is blown, replace it with a new one of the same rating. See Fig 2.

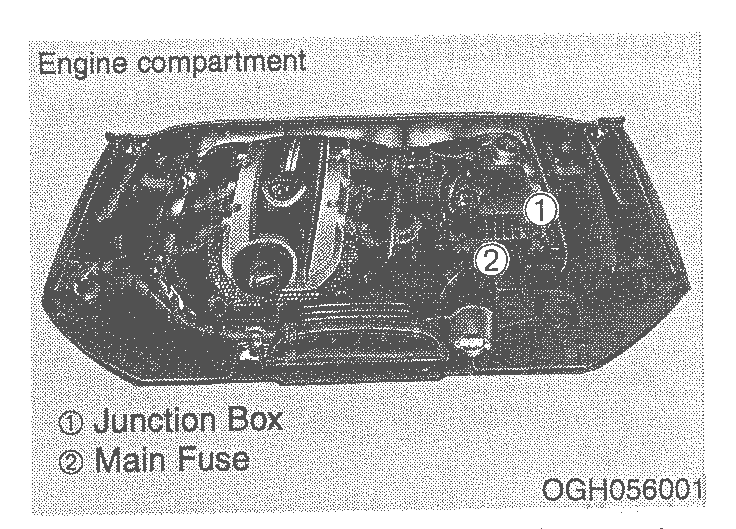

Fig 1: Locating Engine Compartment Fuse/Relay & Engine Compartment Relay Boxes

Courtesy of KIA MOTORS AMERICA, INC.

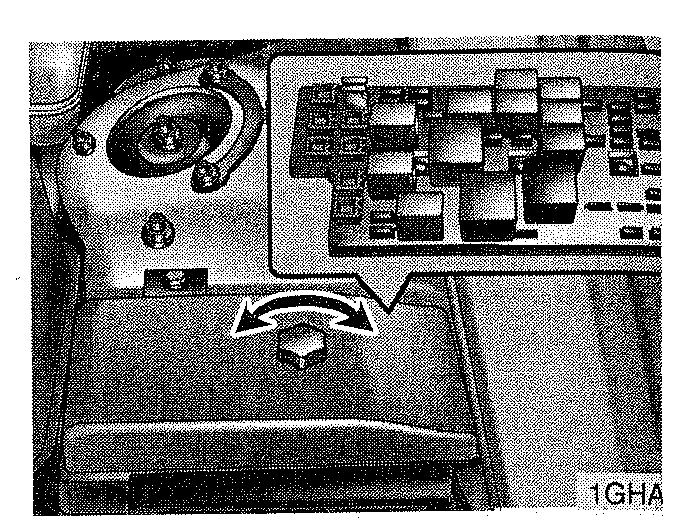

Fig 2: Removing Fuse Box Cover Engine Compartment

Courtesy of KIA MOTORS AMERICA, INC.

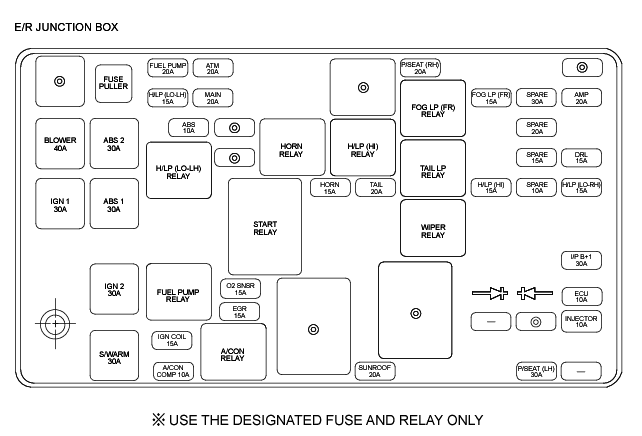

Fig 3: Locating & Identifying Components On Engine Compartment Fuse/Relay Box

Courtesy of KIA MOTORS AMERICA, INC.
