Power Steering Oil Pump: Installation

  1. After installing the oil pump to the oil pump bracket, install the "V" belt and tighten the bolt (A) adjusting tension to the specified torque.

    Oil pump adjusting bolt:

    35~50 Nm (350~500 kg.cm, 25~36 lb.ft)

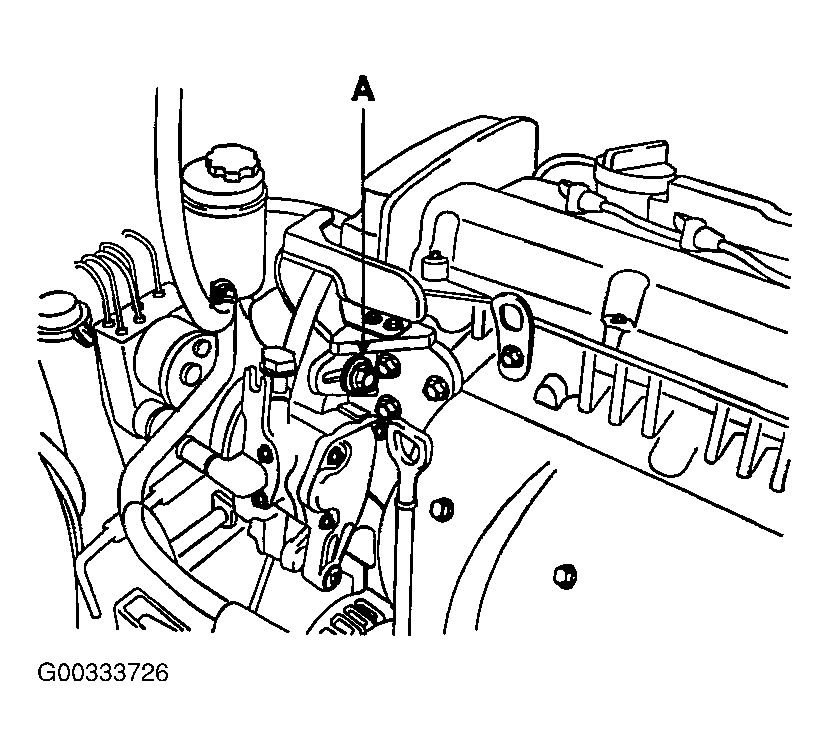

    Fig 1: Identifying Oil Pump Adjusting Bolt
    G00333726Courtesy of KIA MOTORS AMERICA, INC.
  2. Install the suction hose.
    3. NOTE: Install the pressure hose being careful so that it does not twist and come in contact with other components.

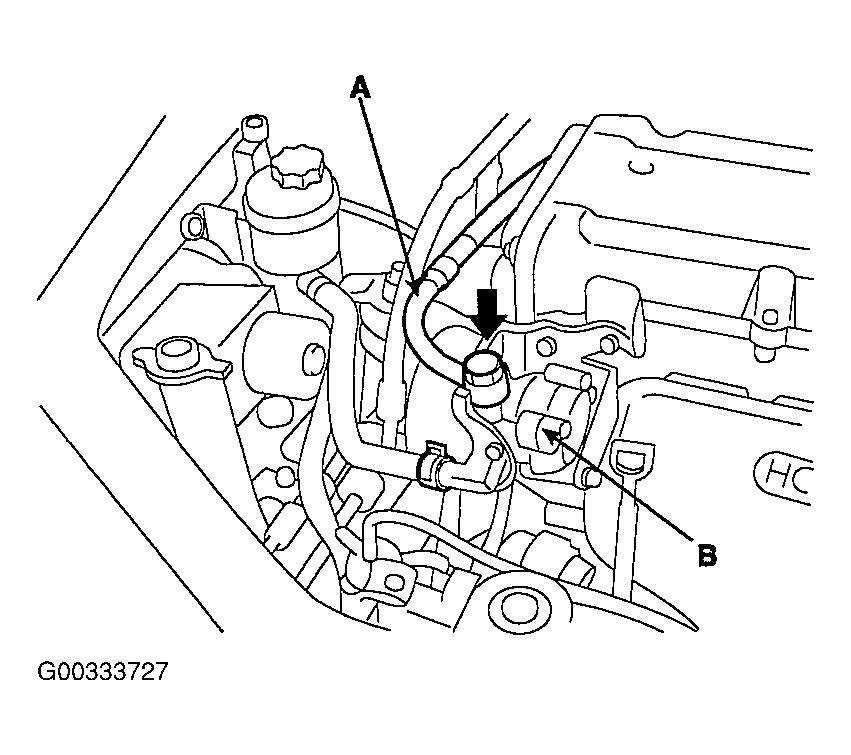

    Fig 2: Installing Oil Pump Hoses
    G00333727Courtesy of KIA MOTORS AMERICA, INC.
  3. Install the pressure hose (A) to the oil pump (B).
  4. Add power steering fluid (PSF-III).
  5. Air bleed the system.
  6. Check the oil pump pressure.
