Speed Sensors
DESCRIPTION

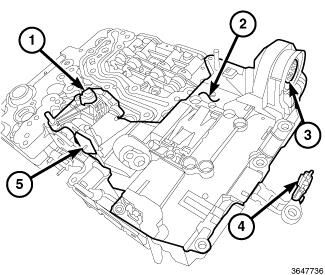

| 1 - Input Speed Sensor (ISS) |
| 2 - Transmission Control Module (TCM) (Includes Trans Temp Sensor) |
| 3 - External Wire Harness Connector |
| 4 - Output Speed Sensor (OSS) |
| 5 - Park Position Sensor |
The Transmission Control Module (TCM), or Transmission Control Module Assembly (TCMA) is extremely sensitive to Electrostatic Discharge (ESD). Always use a ground strap and follow the ESD guidelines in ELECTROSTATIC DISCHARGE (ESD) SENSITIVE DEVICES. Failure to follow these instructions may result in damage to the TCM/TCMA.
The ISS and the OSS are integrated components of the TCMA and not serviced individually.
OPERATION
The Transmission Control Module (TCM), or Transmission Control Module Assembly (TCMA) is extremely sensitive to Electrostatic Discharge (ESD). Always use a ground strap and follow the ESD guidelines in ELECTROSTATIC DISCHARGE (ESD) SENSITIVE DEVICES. Failure to follow these instructions may result in damage to the TCM/TCMA.
| A - Input Speed Sensor (ISS) |
| B - Magnetic Ring |
The ISS and OSS are Hall-effect sensors that measure shaft rotational speed. The ISS is located at the front of the TCMA and reads input shaft speed from the magnetic ring on the P2 carrier.
The OSS is located at the back of the TCMA and reads output shaft speed from the P4 carrier.
