Installation - 2.4L
- If necessary, Install a new throttle-to-intake manifold gasket.CAUTION:
DO NOT OVER TORQUE. Over tightening can cause damage to the throttle body, gaskets, bolts or the intake manifold.

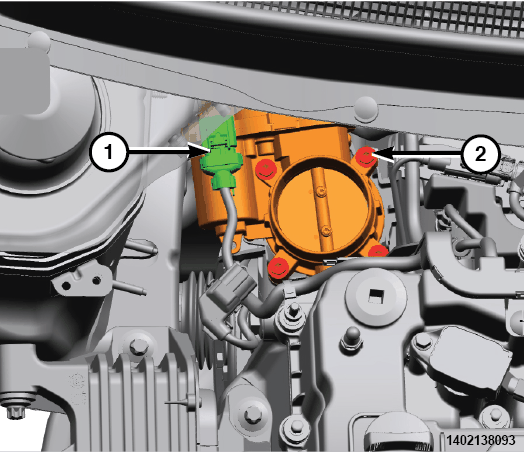

- Install the throttle body with the bolts (2) finger tight.CAUTION:
The throttle body must be torqued in a mandatory torque sequence. Tighten in a criss - cross pattern to specification.
- Tighten the bolts (2) in a crisscross pattern to the proper specifications. Refer to TORQUE SPECIFICATIONS .
- Connect the throttle body wire harness connector (1).
- Install the clean air hose.
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
- Use a scan tool to clear all Diagnostic Trouble Codes (DTC) and perform Electronic Throttle Control (ETC) relearn function.
