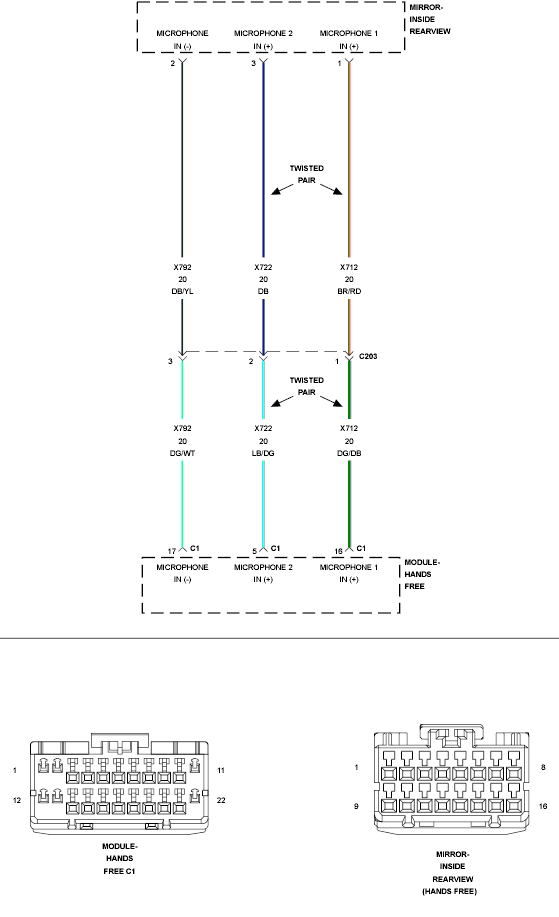

Home >> Jeep >> 2009 >> Commander Overland, RWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Entertainment Systems >> Hands Free Module (HFM) - Electrical Diagnostics >> DTC Troubleshooting >> B1492-General Microphone Performance >> Circuit Schematic
