Commander Base, 4.7 P, AWD
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
Connector End Views
>>
Connector Pin-Outs
>>
Center High Mounted Stop Lamp Connector End View
Center High Mounted Stop Lamp Connector End View

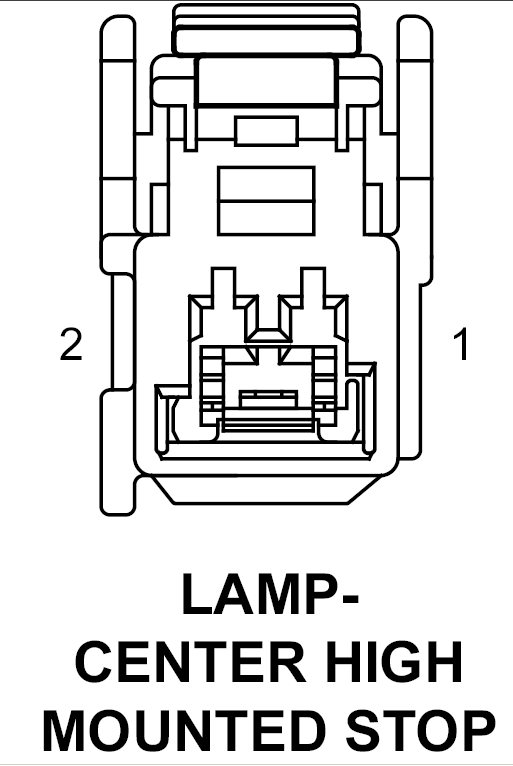

LAMP-CENTER HIGH MOUNTED STOP - 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Z800 18BK
GROUND
2
L50 18WT/TN
BRAKE LAMP SWITCH OUTPUT
