Working Pressure Regulating Valve (Operating Pressure)

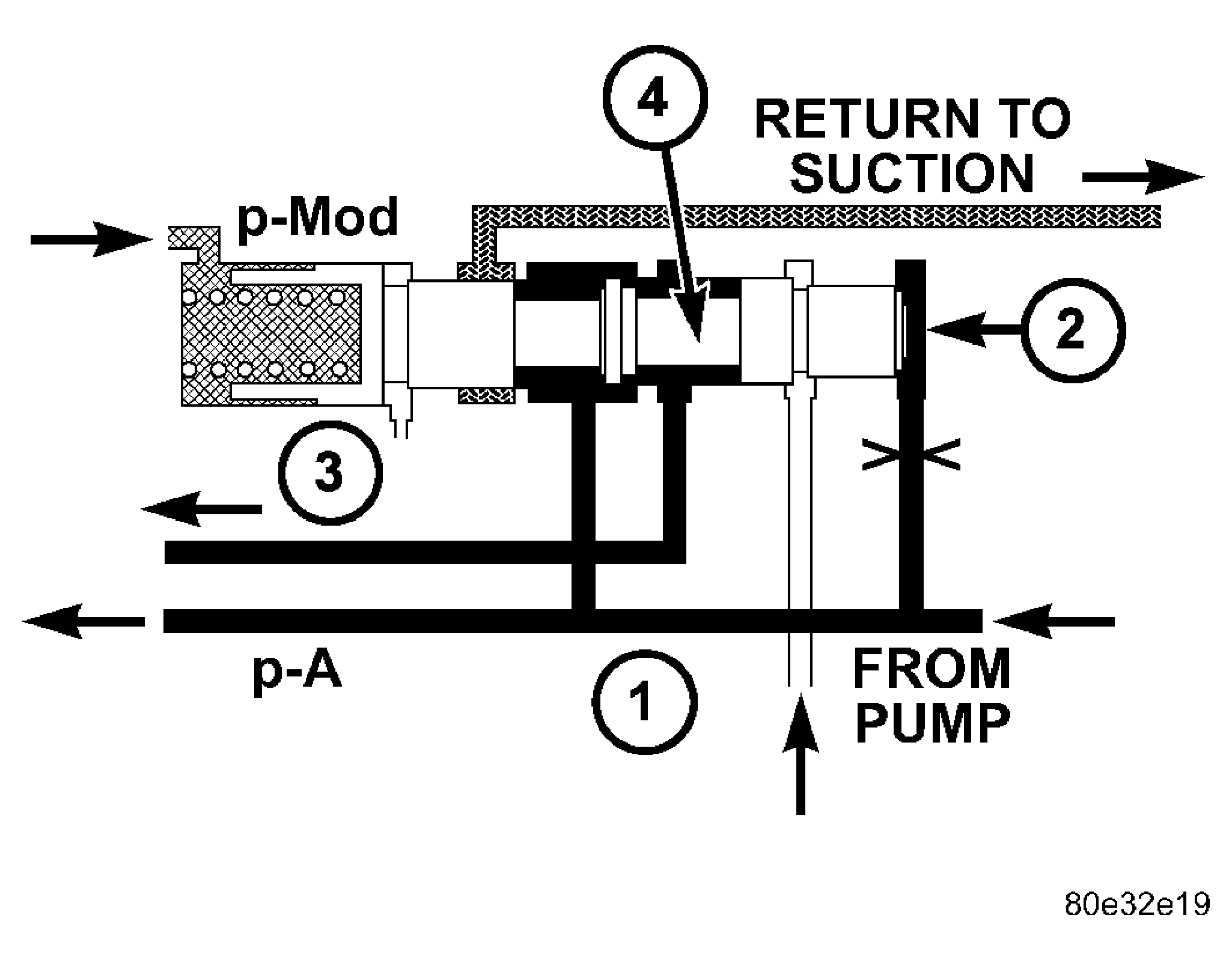

Fig 1: Working Pressure Regulating Valve

Courtesy of DAIMLERCHRYSLER CORP.

1 - PRESSURE FROM K1/K2

2 - END FACE

3 - TO TORQUE CONVERTER REGULATING VALVE

4 - WORKING PRESSURE REGULATING VALVE

The working pressure regulating valve (4) is located in the valve housing of the shift plate. It regulates the primary pressure of the hydraulic system. See Fig 1.
