4.16.3 Monitoring Structure

Fig 1: Monitoring Structure

G06421853

Courtesy of JAGUAR CARS, INC.

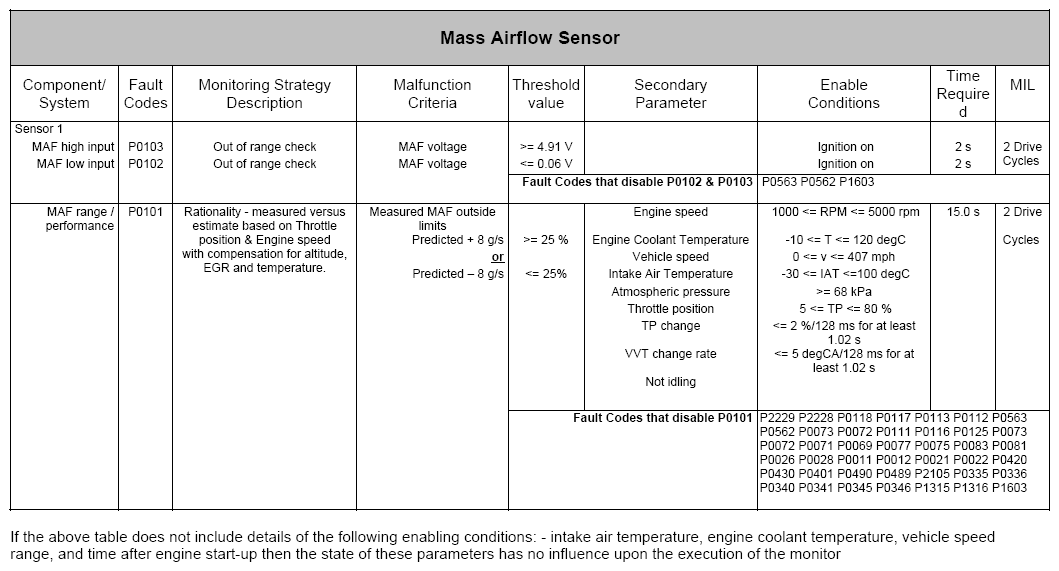

Fig 2: Mass Airflow Sensor (Diagnostic Trouble Codes P0101, P0102, P0103)

G06421854

Courtesy of JAGUAR CARS, INC.
