Speed Control Sensor - Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jaguar XKR, 2009 Jaguar XK8, 2008 Jaguar XKR, 2008 Jaguar XK8, and 2007 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect WDS to the vehicle and up-load the relevant data.
    2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
  2. Raise and support the vehicle.
  3. Remove the front bumper cover. Refer to Front Bumper Cover .

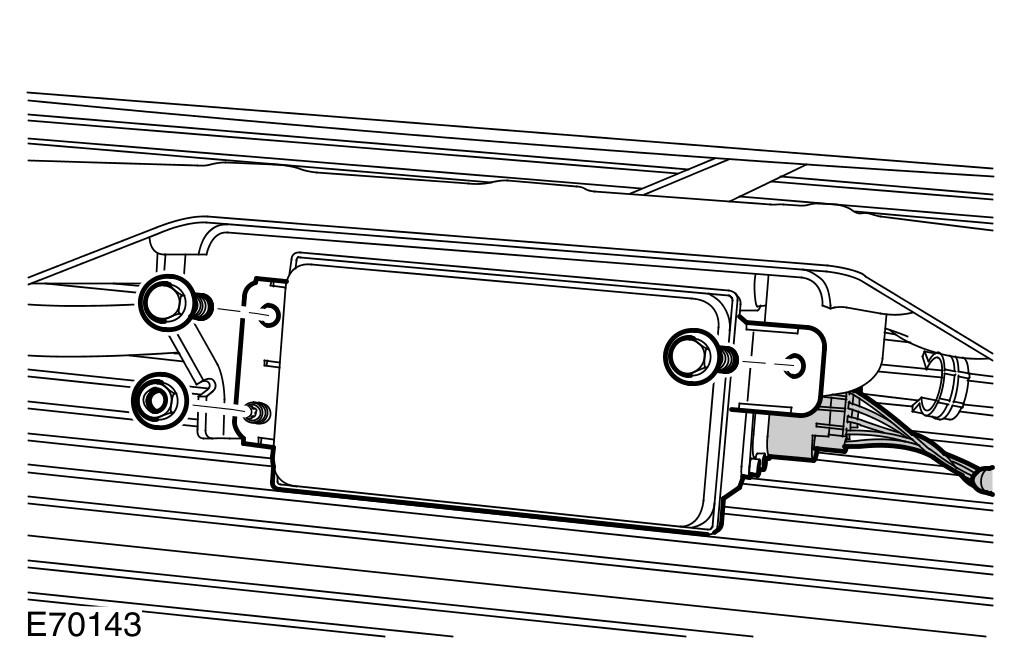

    GJ0010283Courtesy of JAGUAR CARS, INC.
  4. Remove the speed control sensor.
    • Remove the 2 bolts.
    • Remove the nut.
    • Disconnect the electrical connector.
