Removal Procedure

    Fig 1: Top Of Engine Wiring Harness View
    GM898326Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the manifold absolute pressure (MAP) sensor electrical connector (3).

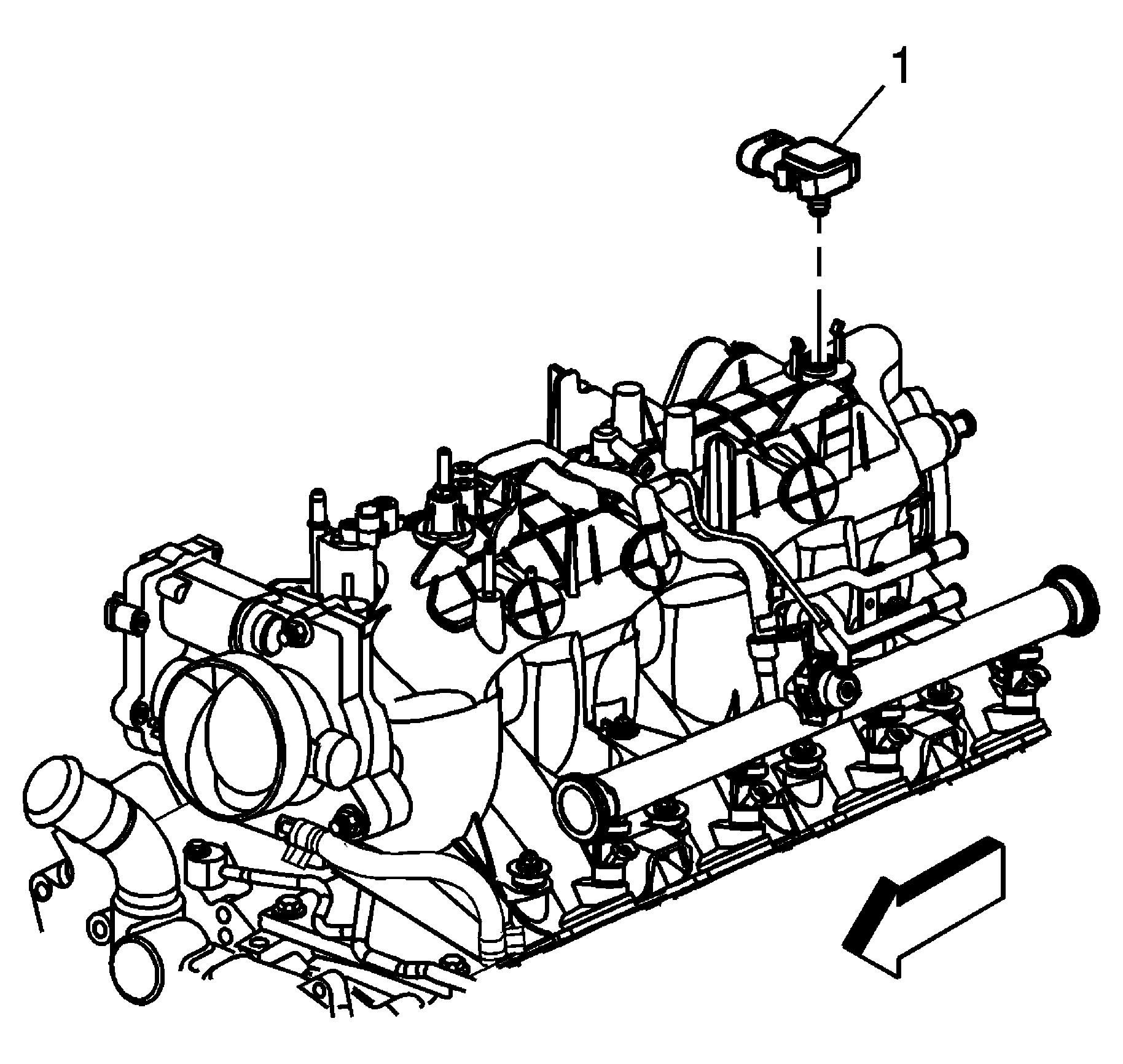

    2. Fig 2: View Of MAP Sensor
    GM825838Courtesy of GENERAL MOTORS CORP.
  2. Remove the MAP sensor (1) from the intake manifold.
