Exploded View

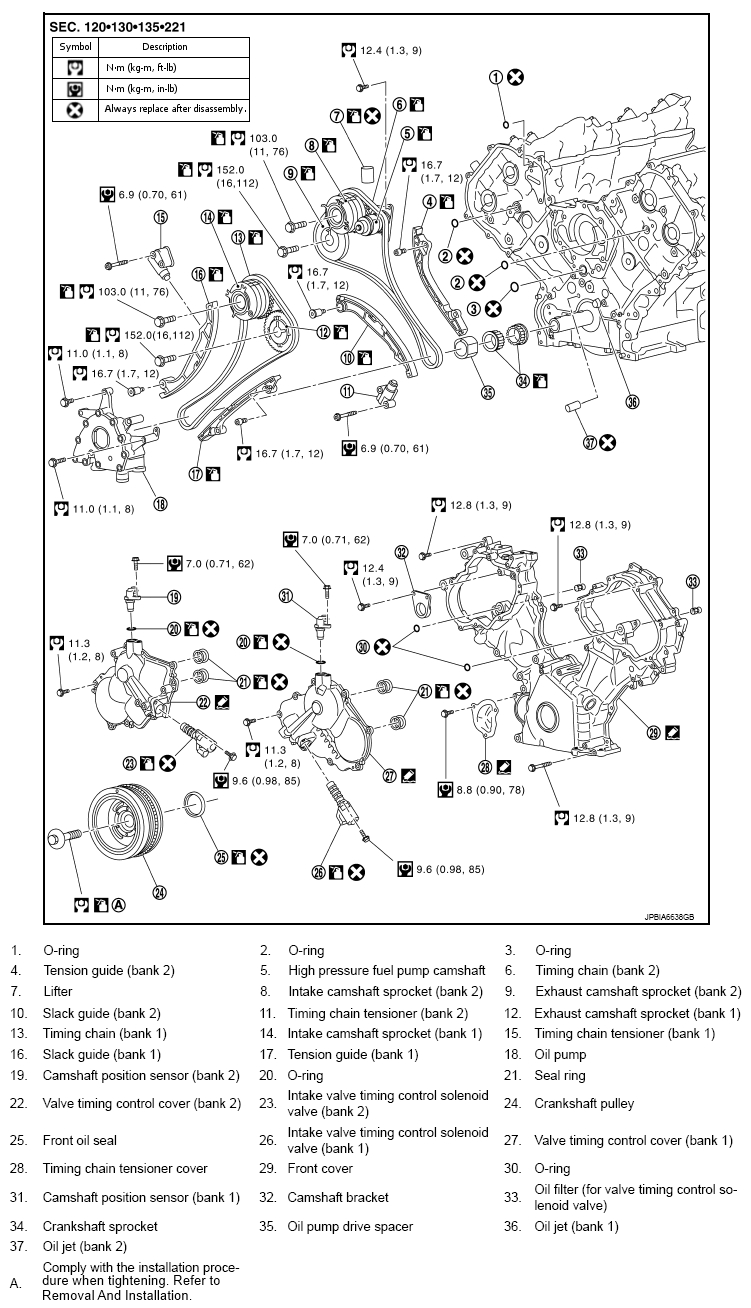

Fig 1: Exploded View Of Timing Chain

G09180417

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbol marks in the figure.
