Multiple Systems Malfunction

Front air bag system
When driver air bag module (Item display 1) and air bag diagnosis sensor unit system (Item display 2) are malfunctioning.

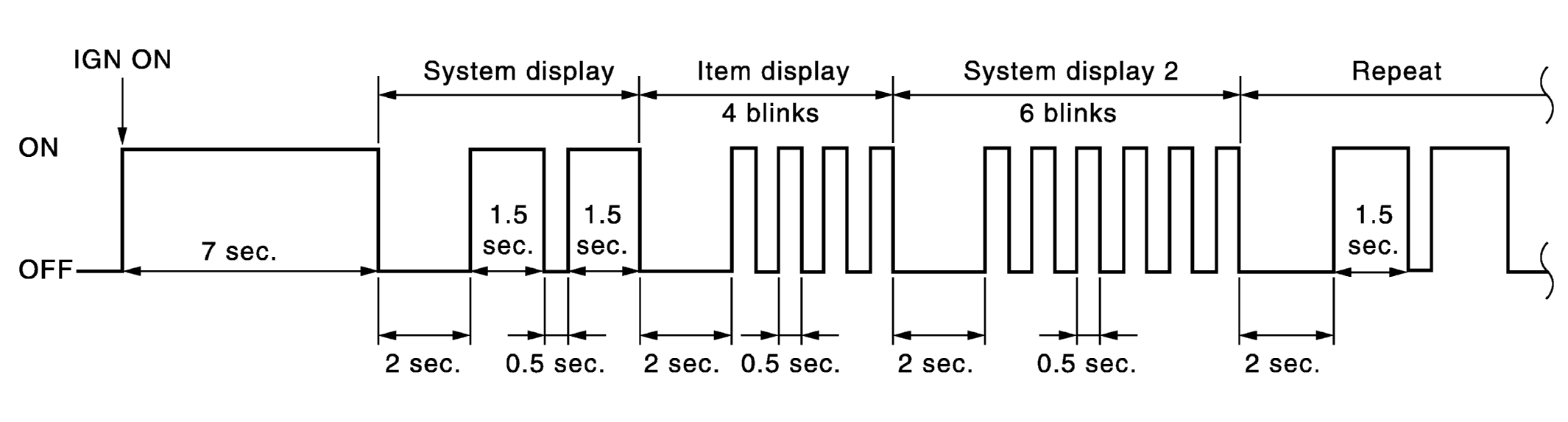

Fig 1: Air Bag Warning Lamp Blinking Pattern (Front Air Bag Multiple System Malfunction)
Courtesy of NISSAN NORTH AMERICA, INC.
Side air bag system
When satellite sensor LH (Item display1) and curtain air bag module LH system (Item display 2) are malfunctioning.

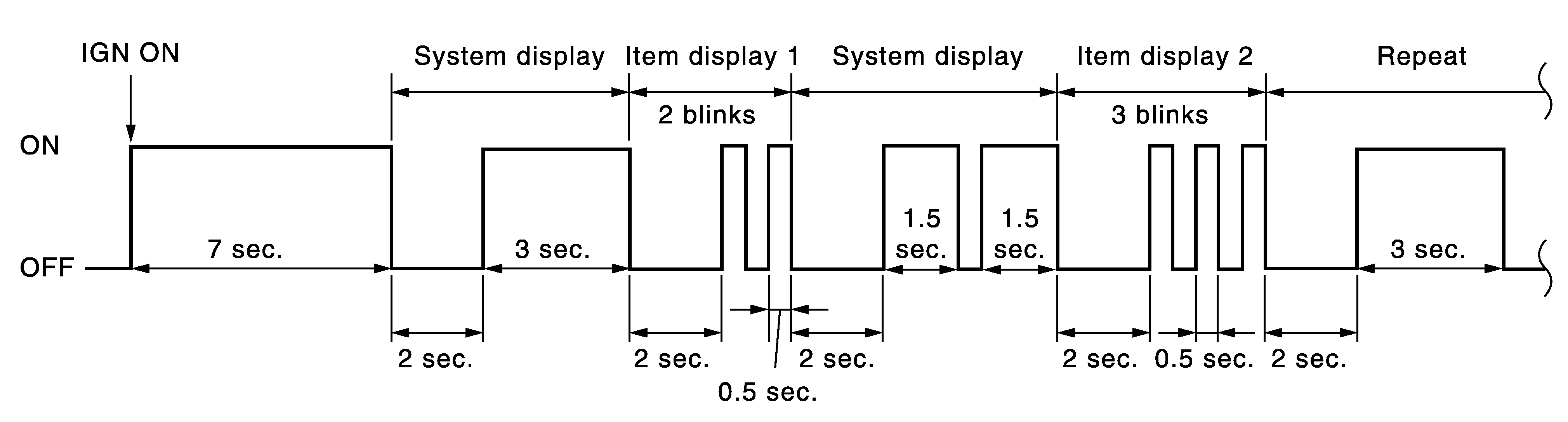

Fig 2: Air Bag Warning Lamp Blinking Pattern (Side Air Bag Multiple System Malfunction)
Courtesy of NISSAN NORTH AMERICA, INC.
Front air bag system and side air bag system
When driver air bag module (Item display 1) and satellite sensor RH (Item display2) are malfunctioning.

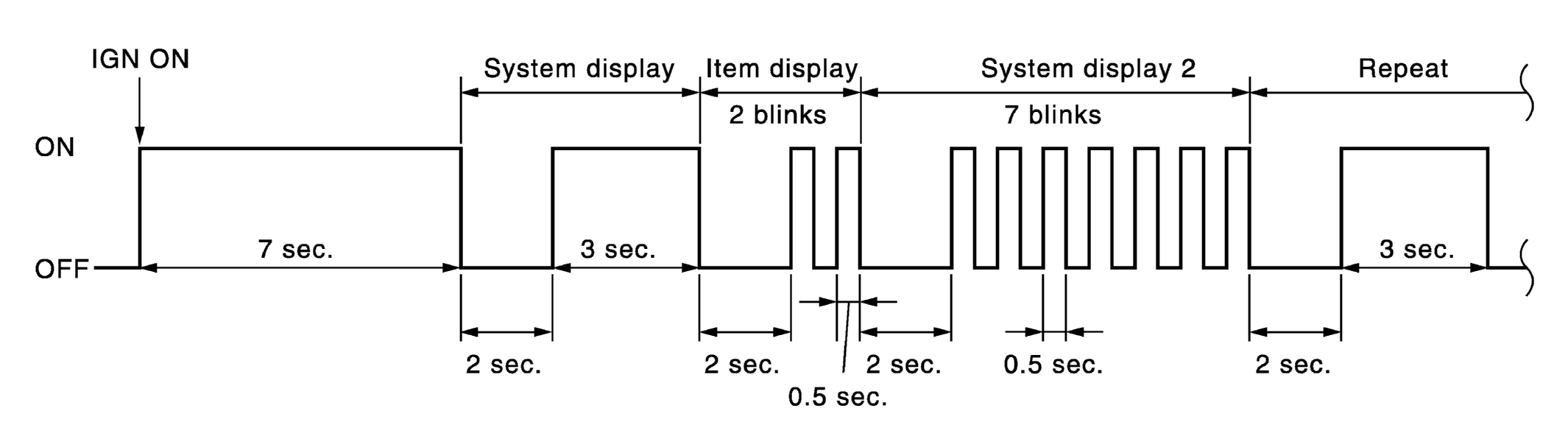

Fig 3: Air Bag Warning Lamp Blinking Pattern (Front And Side Air Bag Multiple System Malfunction)
Courtesy of NISSAN NORTH AMERICA, INC.
