Component Parts Location

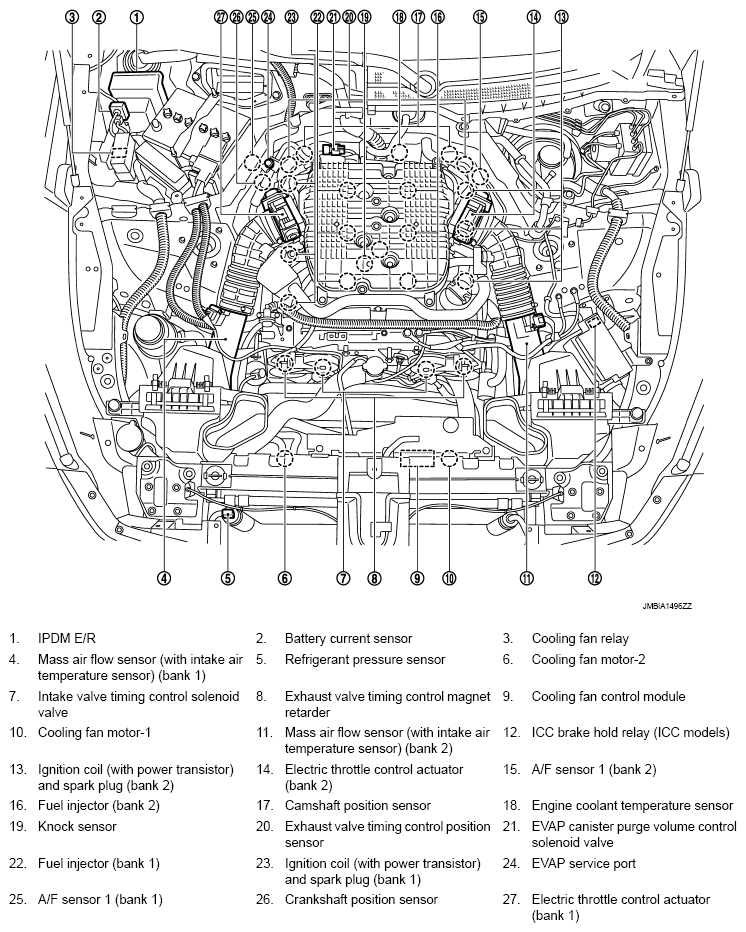

Fig 1: Identifying Exhaust Valve Timing Control Component Parts Location (1 Of 20)

G07240006

Courtesy of NISSAN MOTOR CO., U.S.A.

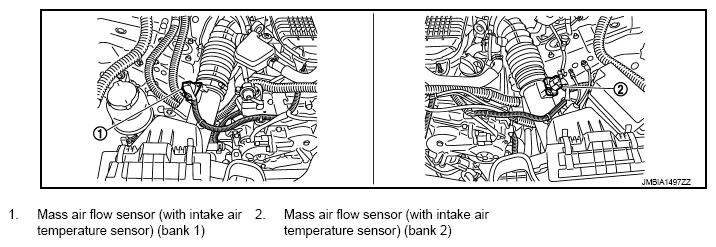

Fig 2: Identifying Exhaust Valve Timing Control Component Parts Location (2 Of 20)

G07240007

Courtesy of NISSAN MOTOR CO., U.S.A.

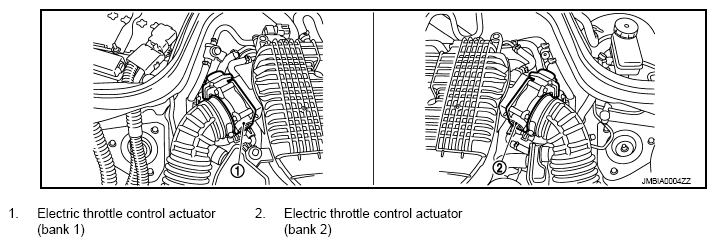

Fig 3: Identifying Exhaust Valve Timing Control Component Parts Location (3 Of 20)

G07240008

Courtesy of NISSAN MOTOR CO., U.S.A.

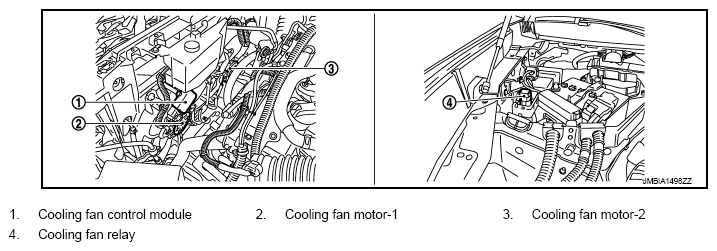

Fig 4: Identifying Exhaust Valve Timing Control Component Parts Location (4 Of 20)

G07240009

Courtesy of NISSAN MOTOR CO., U.S.A.

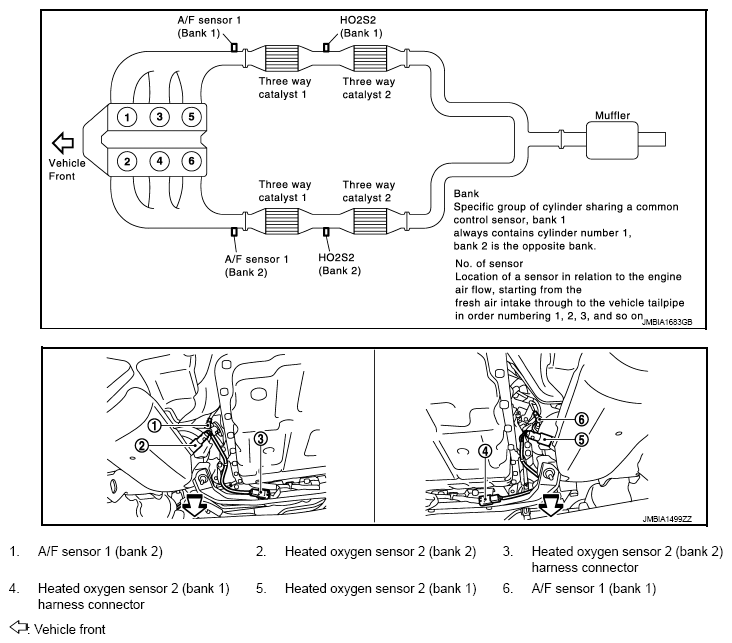

Fig 5: Identifying Exhaust Valve Timing Control Component Parts Location (5 Of 20)

G07240010

Courtesy of NISSAN MOTOR CO., U.S.A.

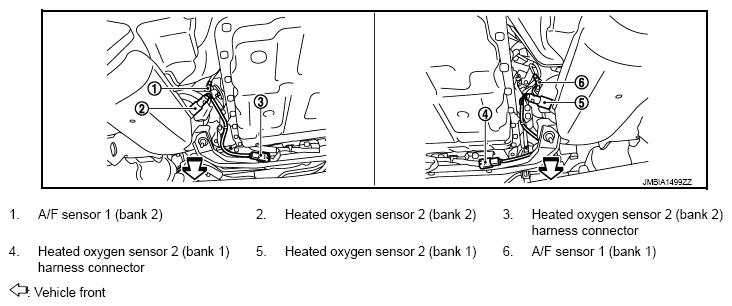

Fig 6: Identifying Exhaust Valve Timing Control Component Parts Location (6 Of 20)

G07272941

Courtesy of NISSAN MOTOR CO., U.S.A.

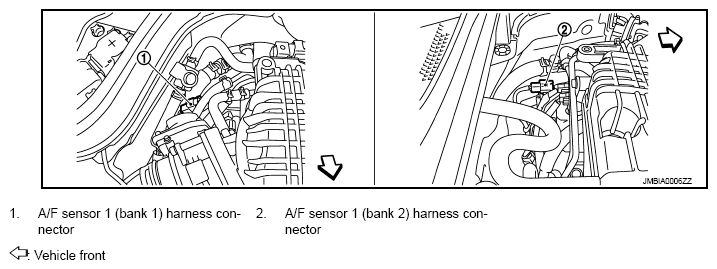

Fig 7: Identifying Exhaust Valve Timing Control Component Parts Location (7 Of 20)

G07240011

Courtesy of NISSAN MOTOR CO., U.S.A.

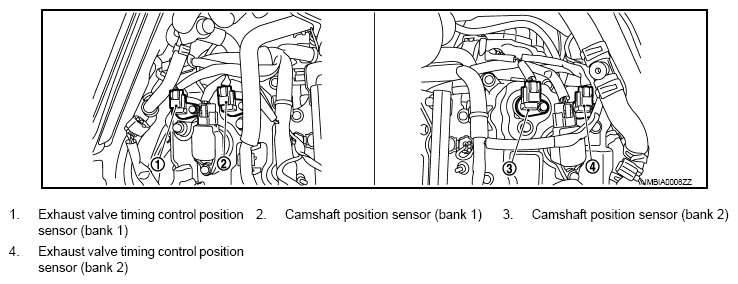

Fig 8: Identifying Exhaust Valve Timing Control Component Parts Location (8 Of 20)

G07240012

Courtesy of NISSAN MOTOR CO., U.S.A.

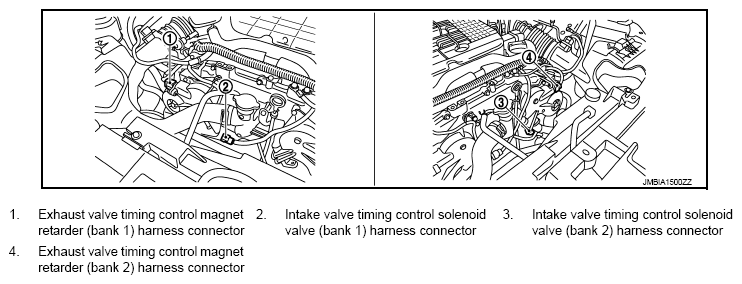

Fig 9: Identifying Exhaust Valve Timing Control Component Parts Location (9 Of 20)

G07240013

Courtesy of NISSAN MOTOR CO., U.S.A.

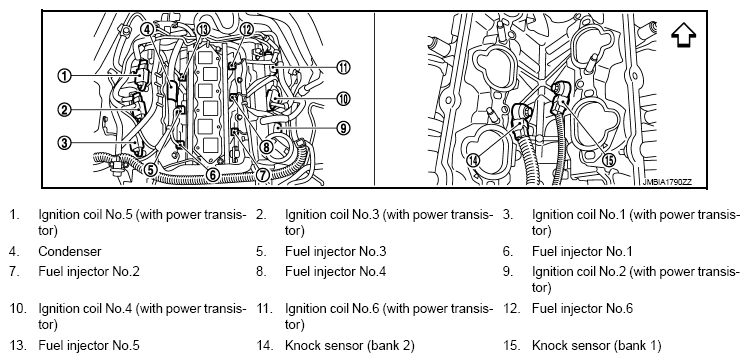

Fig 10: Identifying Exhaust Valve Timing Control Component Parts Location (10 Of 20)

G07240014

Courtesy of NISSAN MOTOR CO., U.S.A.

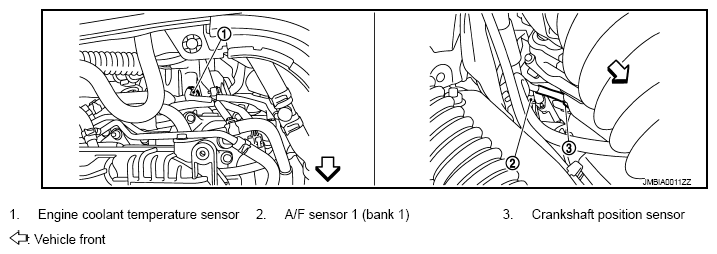

Fig 11: Identifying Exhaust Valve Timing Control Component Parts Location (11 Of 20)

G07240015

Courtesy of NISSAN MOTOR CO., U.S.A.

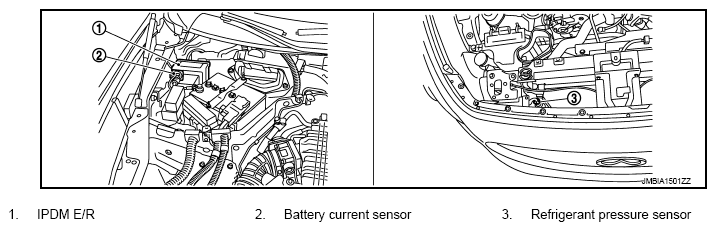

Fig 12: Identifying Exhaust Valve Timing Control Component Parts Location (12 Of 20)

G07240016

Courtesy of NISSAN MOTOR CO., U.S.A.

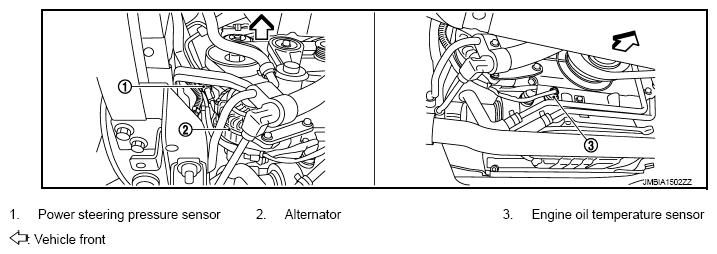

Fig 13: Identifying Exhaust Valve Timing Control Component Parts Location (13 Of 20)

G07240017

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Exhaust Valve Timing Control Component Parts Location (14 Of 20)

G07240018

Courtesy of NISSAN MOTOR CO., U.S.A.

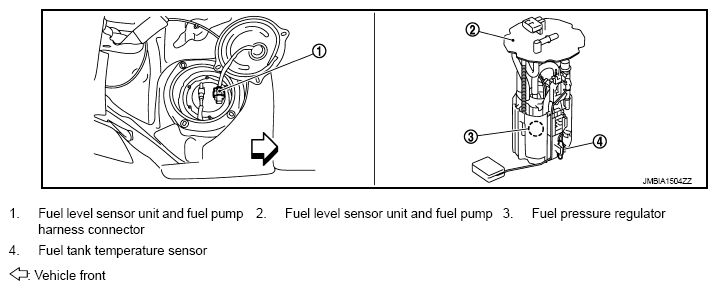

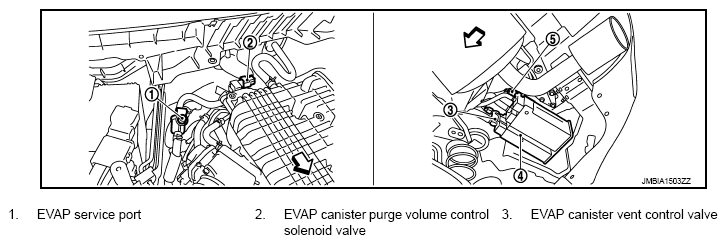

Fig 15: Identifying Exhaust Valve Timing Control Component Parts Location (15 Of 20)

G07240019

Courtesy of NISSAN MOTOR CO., U.S.A.

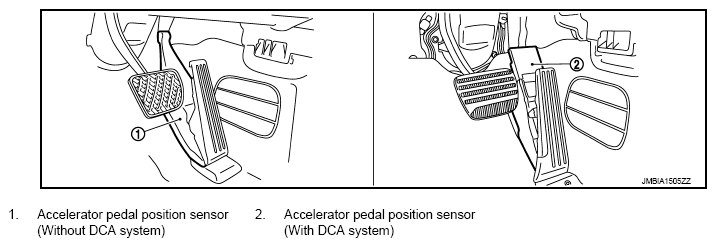

Fig 16: Identifying Exhaust Valve Timing Control Component Parts Location (16 Of 20)

G07240020

Courtesy of NISSAN MOTOR CO., U.S.A.

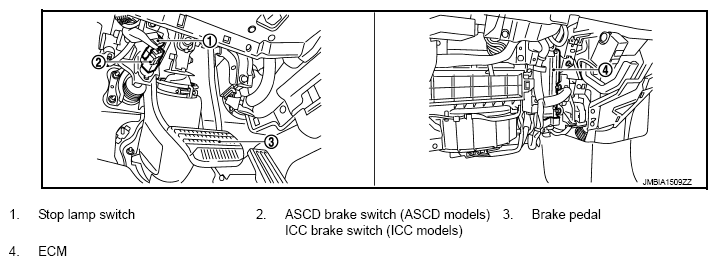

Fig 17: Identifying Exhaust Valve Timing Control Component Parts Location (17 Of 20)

G07240021

Courtesy of NISSAN MOTOR CO., U.S.A.

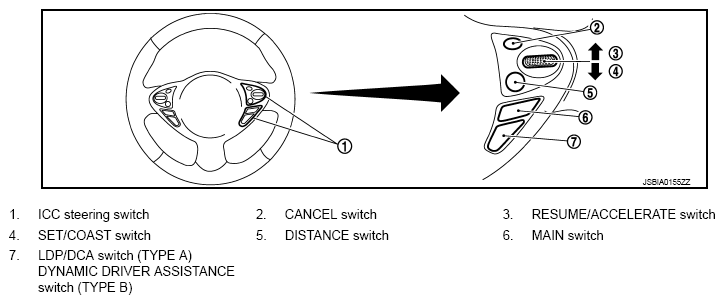

Fig 18: Identifying Exhaust Valve Timing Control Component Parts Location (18 Of 20)

G07240022

Courtesy of NISSAN MOTOR CO., U.S.A.

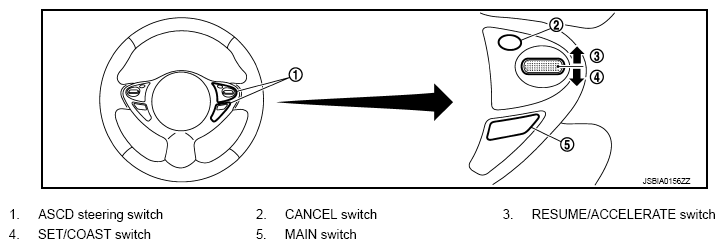

Fig 19: Identifying Exhaust Valve Timing Control Component Parts Location (19 Of 20)

G07240023

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Exhaust Valve Timing Control Component Parts Location (20 Of 20)

G07240024

Courtesy of NISSAN MOTOR CO., U.S.A.
