Remote Keyless Entry System: Schematic

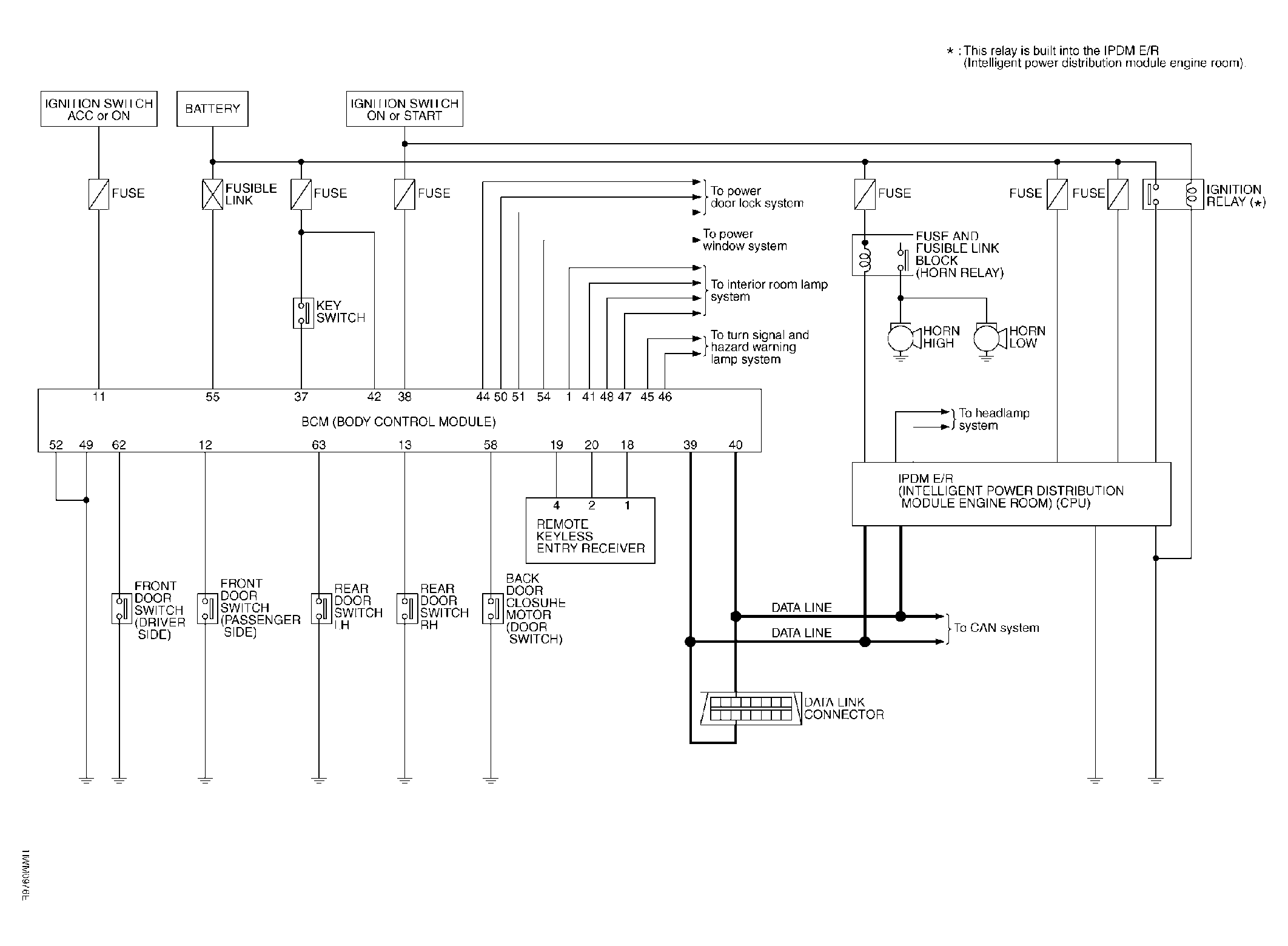

Fig 1: Schematic - Wiring Diagram

G04076963

Courtesy of NISSAN MOTOR CO., U.S.A.
