Engine Controls System - Component Testing - Coupe
>>
Mil And Data Link Connector
>>
Wiring Diagram
Mil And Data Link Connector: Wiring Diagram

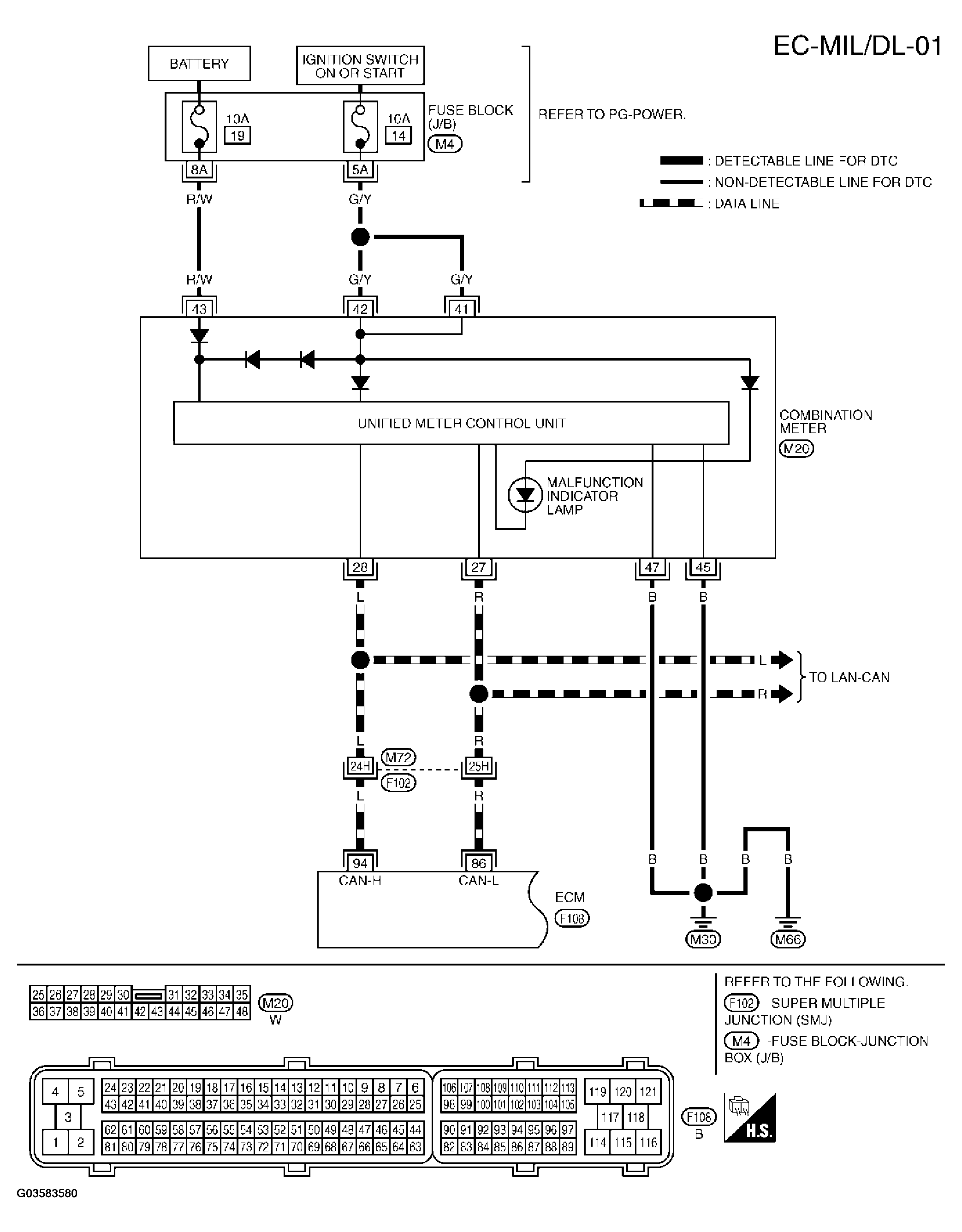

Fig 1: Wiring Diagram MIL And Data Link Connector (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

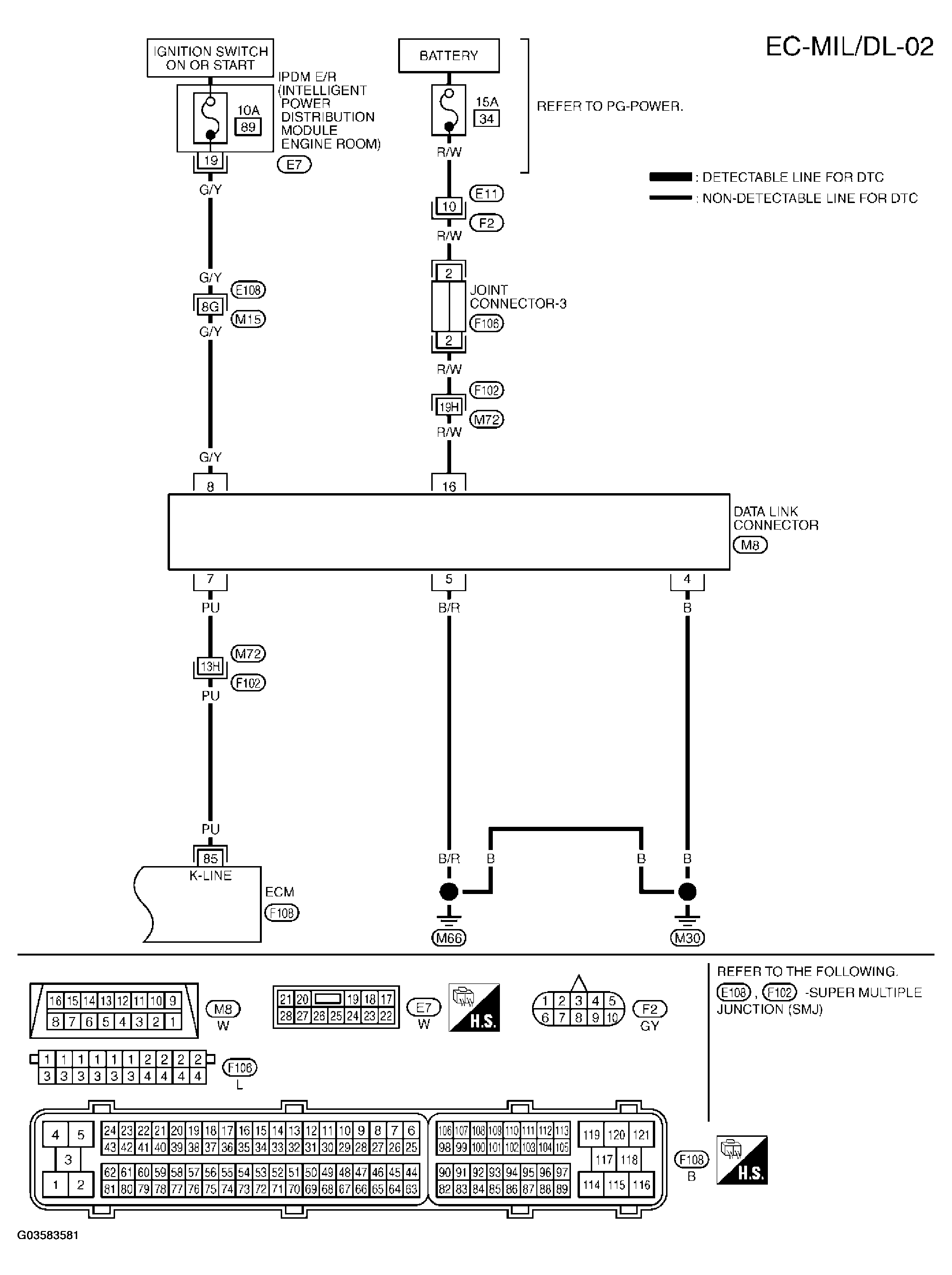

Fig 2: Wiring Diagram MIL And Data Link Connector (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
