Disassembly And Assembly

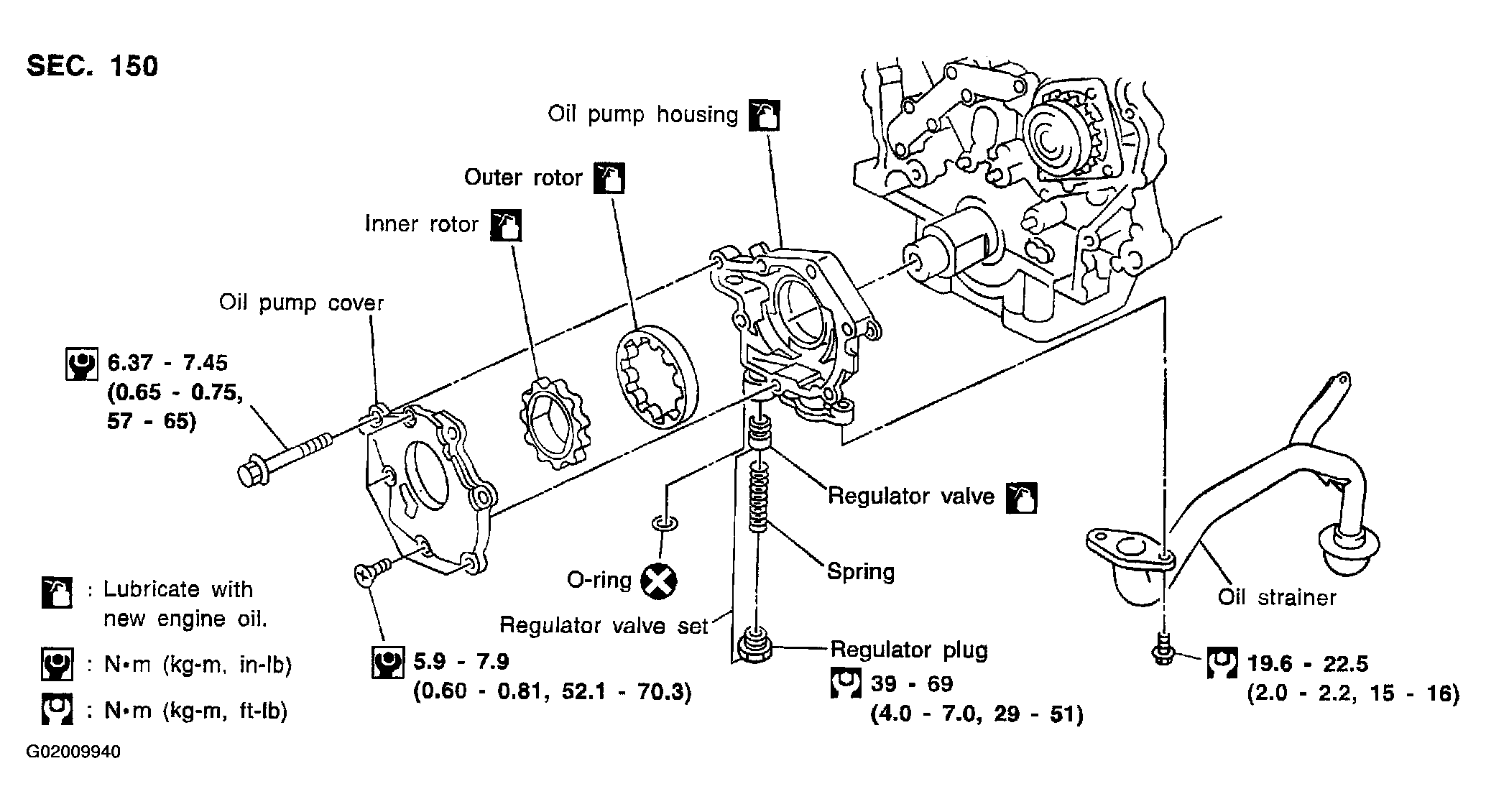

Fig 1: Exploded View Of Oil Pump
Courtesy of NISSAN MOTOR CO., U.S.A.
When installing oil pump, apply engine oil to rotors.
Courtesy of NISSAN MOTOR CO., U.S.A.
