Home >> Hyundai >> 2024 >> Santa Cruz SE, FWD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - 2.5L >> Shift Cable >> Components And Components Location >> Components

Components And Components Location: Components

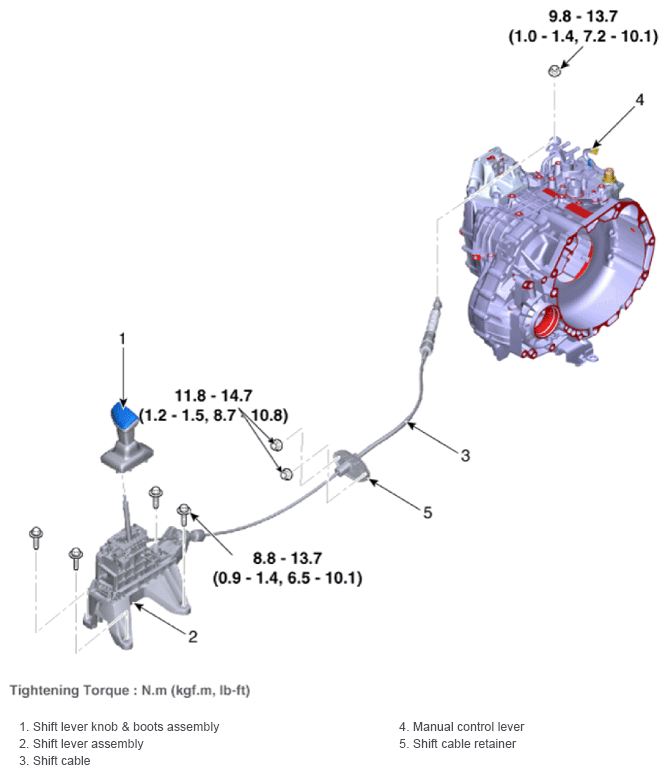

Fig 1: Shift Cable Components Location With Torque Specification

G14775041

Courtesy of HYUNDAI MOTOR AMERICA
