Repair Procedures: Removal
- Make sure vehicle does not roll before setting shift lever to "N" position.
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")

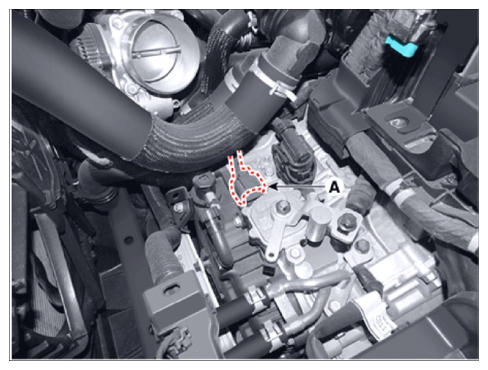

- Disconnect the inhibitor switch connector (A).

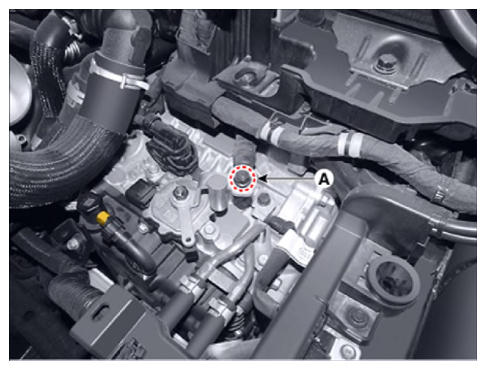

- Loosen the shift cable mounting nut (A).

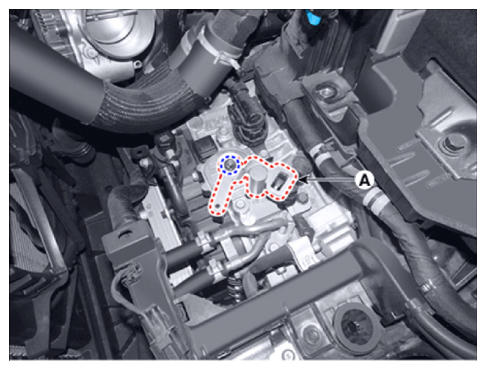

- Remove the manual control lever (A) after loosening the mounting nut.

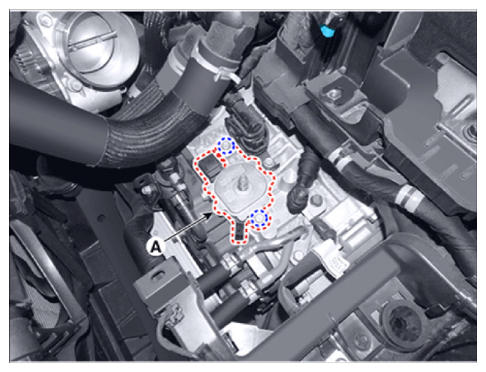

- Loosen the bolts and then removing the position switch (A).
