Smart Key Code Saving

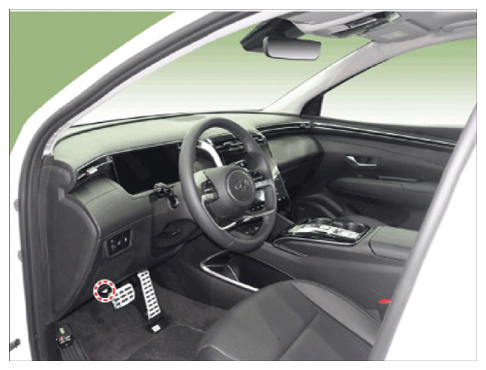

  1. Connect the DLC cable of diagnostic tool to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on diagnostic tool.
    G14776468Courtesy of HYUNDAI MOTOR AMERICA
  2. Select the 'S/W Management' and 'Car model'.

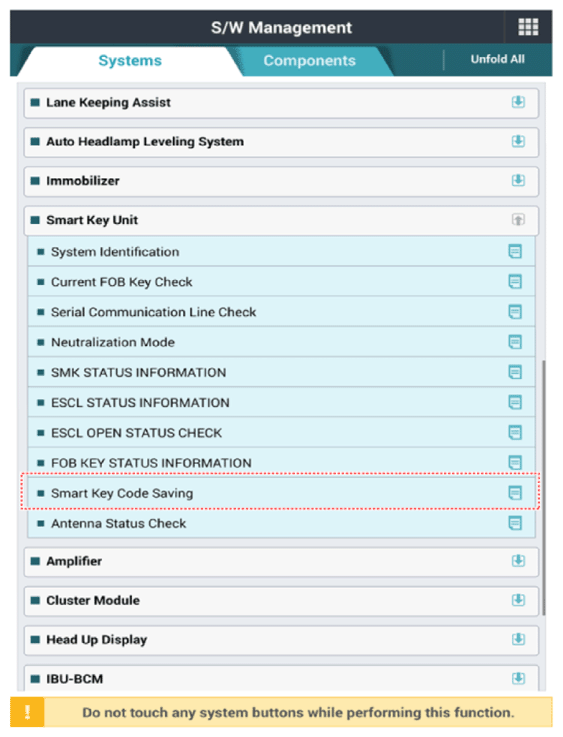

  3. Select the 'Smart Key Unit' and 'Smart Key Code Saving'.
    G14776469Courtesy of HYUNDAI MOTOR AMERICA

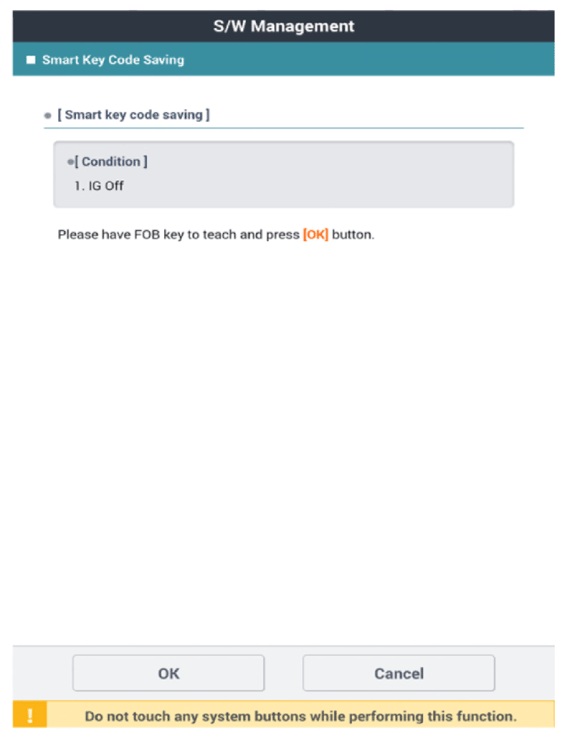

  4. Follow the instructions on the screen.
    G14776470Courtesy of HYUNDAI MOTOR AMERICA
