Components and Components Location: Components

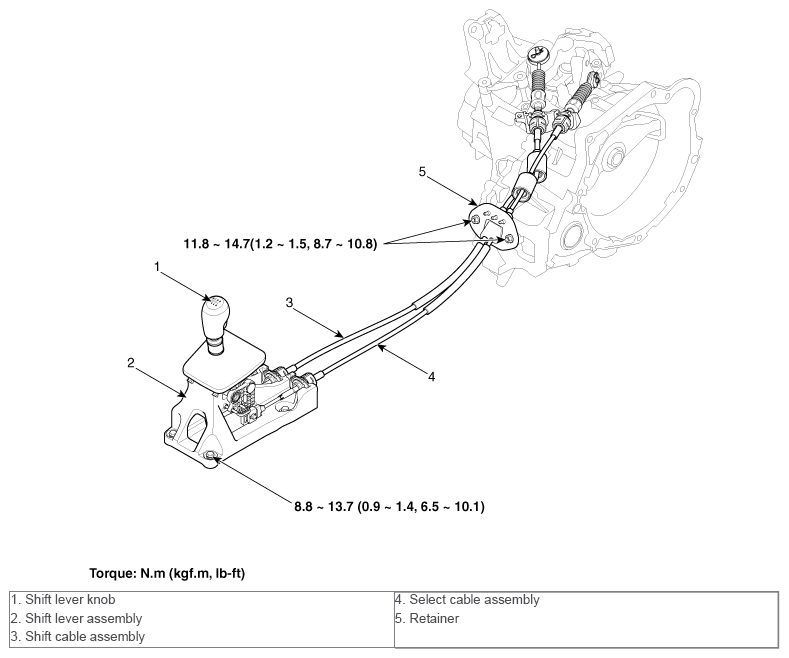

Fig 1: Identifying Manual Transaxle Control System Components With Torque Specifications

G10544513

Courtesy of HYUNDAI MOTOR AMERICA
