Repair Procedures: Removal

  1. Loosen the drain plug and drain the coolant. Open the radiator cap to make rapid draining.

    (Refer to "COOLANT ")

  2. Disconnect the oil cooler hose (A).

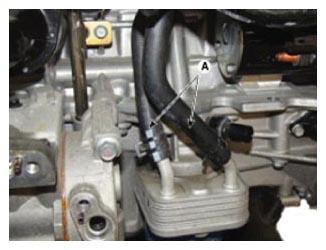

    Fig 1: Identifying Oil Cooler Hose
    G09150187Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the oil filter (A) with the SST (09263-2E000, the oil filter wrench).

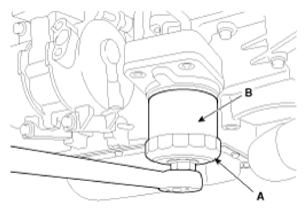

    Fig 2: Removing Oil Filter Using Wrench
    G09150188Courtesy of HYUNDAI MOTOR AMERICA
  4. Loosen the mounting bolt (A), and then remove the oil cooler (B).

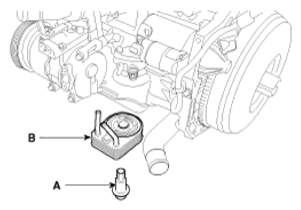

    Fig 3: Identifying Oil Cooler And Mounting Bolt
    G09150189Courtesy of HYUNDAI MOTOR AMERICA
